SA-50
Compact universal stereo amplifier, 25 W
Silent operation due to fanless cooling concept
Additional 3.5 mm connection with switchable sensitivity on the front panel
Audio source selector switch
Controls for volume, bass and treble
6.3 mm headphone output
Robust metal housing
Technical specifications SA-50
SA-50
- Peak output power: 2 x 25 W
- Power rating: 25 W
- Power rating at 4 Ω: 2 x 12.5 W
- Power rating at 8 Ω: 2 x 10 W
- Channels: 2
Inputs:
- 115 mV/12 kΩ (PC),
- 115 mV/12 kΩ (CD),
- 115 mV/12 kΩ (aux),
- 115 mV/12 kΩ (player, high),
- 20 mV/32 kΩ (player, low)
- Frequency range: 20-20,000 Hz
- Equalizer bass: ± 12 dB
- Equalizer treble: ± 12 dB
- S/N ratio: > 65 dB
- Mains voltage: ~ 230 V
- Mains frequency: 50 Hz
- Power consumption, operation: 50 VA
- Admiss. ambient temp.: 0-40 °C
- Width: 212 mm
- Height: 56 mm
- Depth: 200 mm
- Weight: 1.8 kg

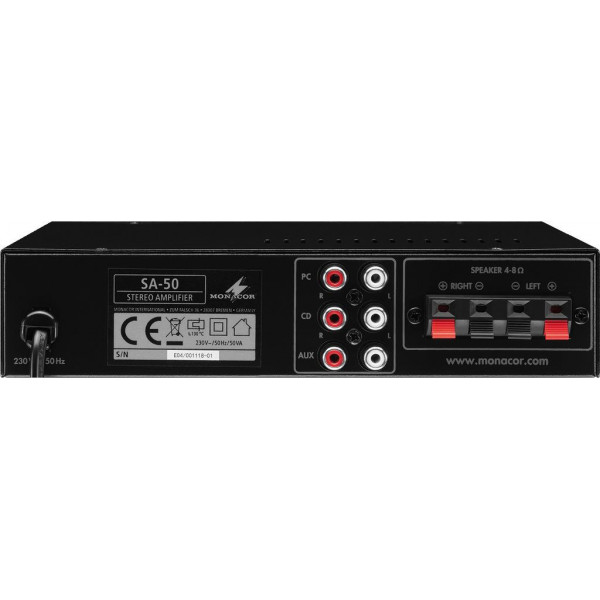

Connections:
- 1 x RCA L/R (PC),
- 1 x RCA L/R (CD),
- 1 x RCA L/R (aux),
- 1 x 3.5 mm jack (player),
- 4 x spring-load. speaker term. (speakers)
Pastiprinātāji | |
Jauda (max), W | 2x 25 |
Jauda, W | 25 |
Kanālu skaits | 2 |
Jauda 4 Ω, W | 2x 12.5 |
Jauda 8 Ω, W | 2x 10 |
Izeju skaits | 2 |
Ieeju skaits | 3 |
