MONACOR PA-900S

• 1 x 120 W
• Silent operation due to fanless cooling concept
• 2-way tone control
• Switchable low cut filter
• Speaker outputs via screw terminals
• Feed-through output (link)
• Mains operation or 24 V emergency power operation
• 482 mm (19") rack installation with supplied mounting brackets

PA-900S

• Peak output power: 160 W
• Power rating: 120 W
• Output impedance: 4 Ω, 70 V/ 100 V
• Channels: 1
• Inputs: 765 mV (line)
• Frequency range: 50-15,000 Hz
• Equalizer bass; ± 10 dB/100 Hz
• Equalizer treble: ± 10 dB/10 kHz
• S/N ratio: > 80 dB
• THD: < 0.5%
• Mains voltage: ~ 230 V
• Mains frequency: 50 Hz
• Power consumption, operation: 300 VA
• Operating voltage (possible alternative): DC 24 V
• Power supply (possible alternative): DC 9 A
• Admiss. ambient temp.: 0-40 °C
• Width: 482 mm
• Height: 88 mm
• Depth: 275 mm
• Rack spaces, RS: 2
• Weight: 9.5 kg

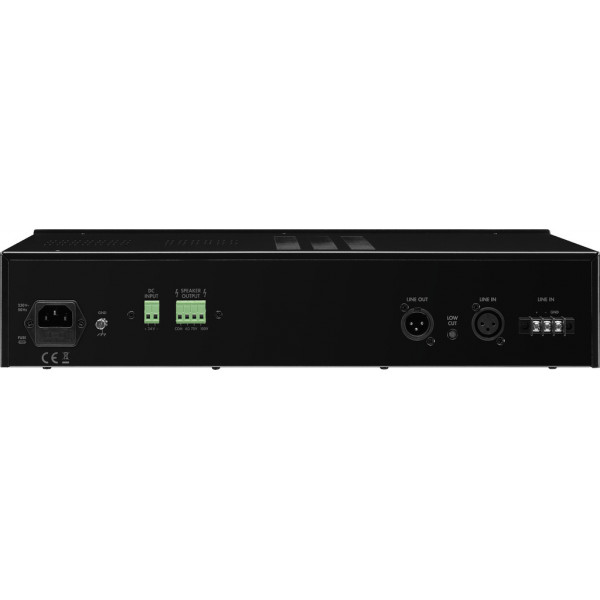

• 1 x XLR, screw terminals (line in),
• 1 x XLR (line out),
• screw terminals (speakers)
