Pieejamība: SAZINIES PAR PIEEJAMĪBU
Ražotājs: Monacor
Modelis: 17.0800

0 atsauksmes - Uzrakstīt atsauksmi par produktu

1,041.00€

bez PVN: 860.33€

Daudzums

Pievienot grozam

Pievienot vēlmju sarakstam Salīdzināt šo produktu

PA-2240

PA power amplifier

2 x 240 W
Routing switch for parallel operation on both channels
Switchable 400 Hz high-pass filter 6 dB/oct.
Soft start
Temperature-controlled fan
LED indication for clip, protect, overtemperature and output level
Mains operation or 24 V emergency power operation

Technical specifications PA-2240

PA-2240

Power rating: 480 W
Power rating at 8 Ω: 2 x 240 W
Power rating at 100 V: 2 x 240 W

Output impedance:

25 V/2.6 Ω, 44 V/8 Ω,
70 V/20 Ω, 100 V/42 Ω

Channels: 2
Inputs: 1.2 V, bal.
Frequency range: 35-20,000 Hz
S/N ratio: > 100 dBA
THD: < 1%
Mains voltage: ~ 230 V
Mains frequency: 50 Hz
Power consumption, operation: 1,300 VA
Operating voltage (possible alternative): DC 24 V
Power supply (possible alternative): DC 55 A
Admiss. ambient temp.: 0-40 °C
Width: 483 mm
Height: 88 mm
Depth: 374 mm
Rack spaces, RS: 2
Weight: 18 kg

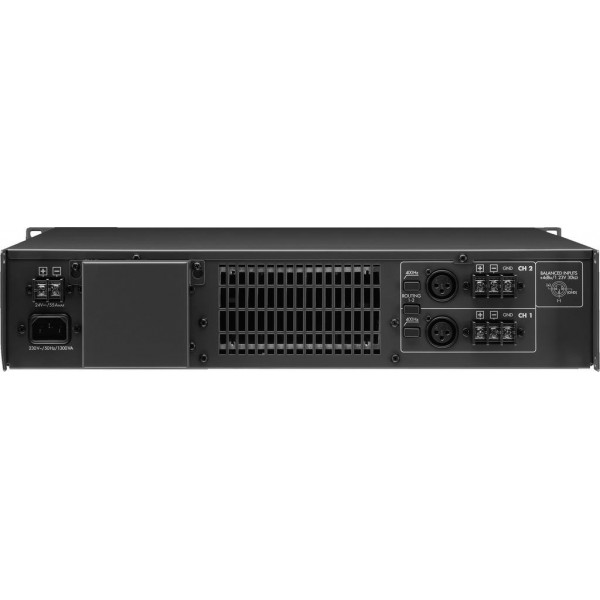

Connections:
2 x XLR / screw terminals (inputs)
screw terminals (speakers)

Pastiprinātāji
100 V	Jā
Jauda, W	480
Kanālu skaits	2
Jauda 8 Ω, W	2x 240
Izeju skaits	2
Ieeju skaits	2
