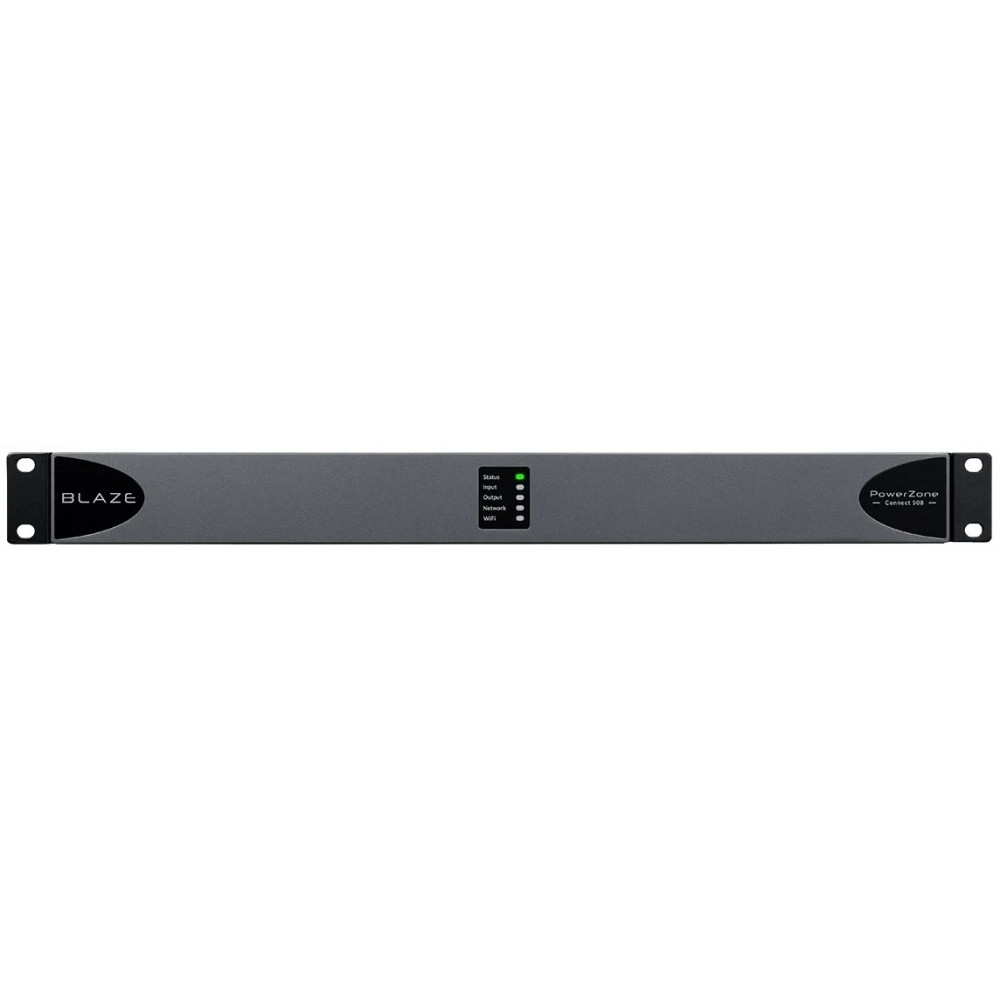

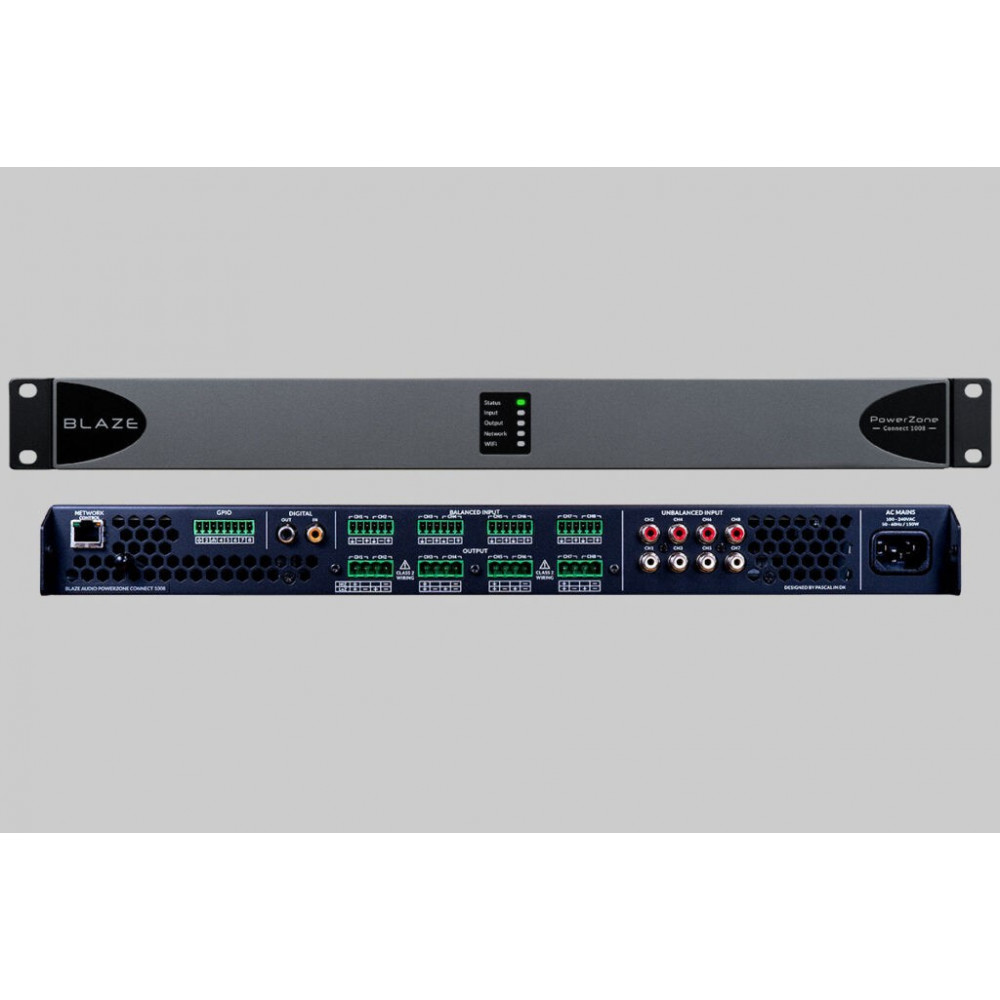

BLAZE AUDIO PowerZone™ Connect 508

BLAZE AUDIO PowerZone™ Connect 508
BLAZE AUDIO PowerZone™ Connect 508
BLAZE AUDIO PowerZone™ Connect 508
Jaunums
BLAZE AUDIO PowerZone™ Connect 508
BLAZE AUDIO PowerZone™ Connect 508
BLAZE AUDIO PowerZone™ Connect 508
  • 1RU form factor

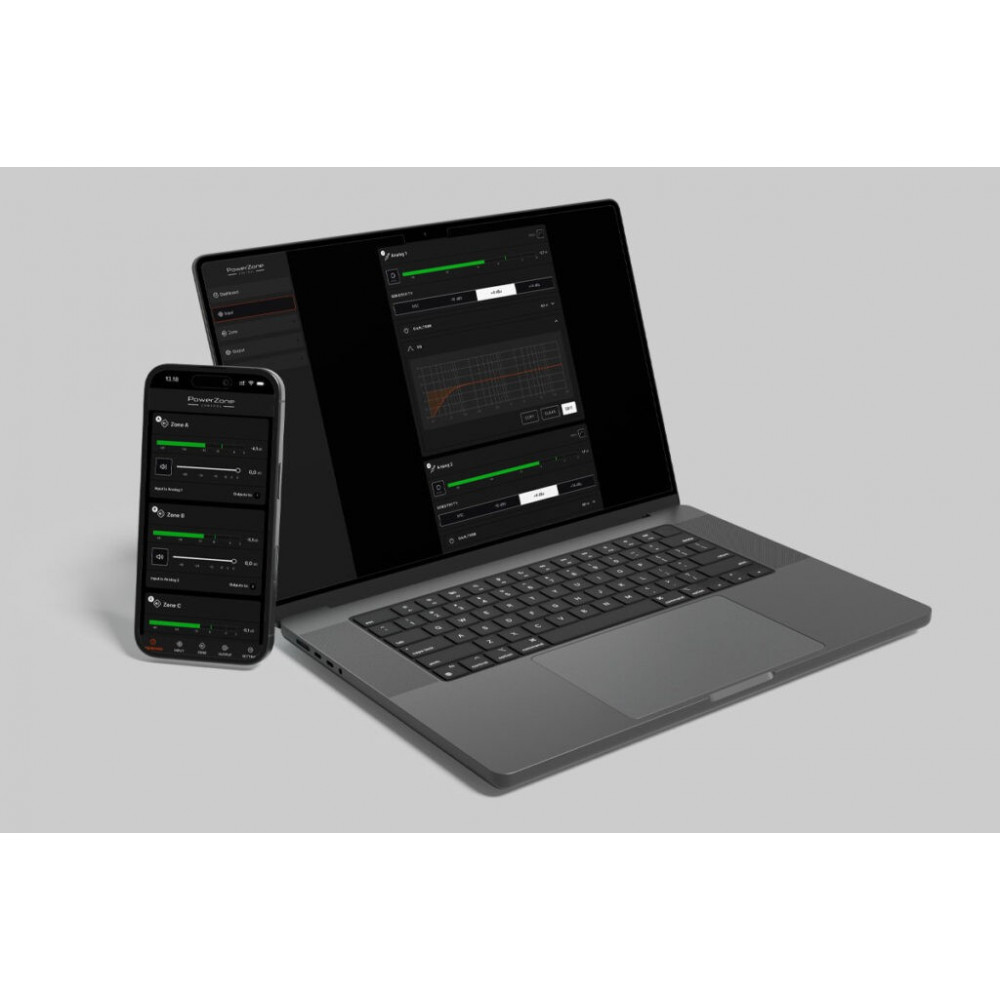

  • Full-matrix DSP configuration via PowerZone™ Control web app (built-in)
  • Hybrid power distribution in both Lo-Z and Hi-Z
  • Powered by Pascal UMAC™ Class-D technology
  • S/PDIF input/output
  • Configurable GPIO
  • ErP and Energy Star compliant
  • UL listed audio equipment
  • UREC™ universal power supply with PFC
  • 5 Year warranty



Total System Power

1000 W

Output Power @ 4/8Ω

8 x 125 W

Output Power @ 70/100V*

4 x 250 W

Powershare (up to) Across all channels**

4 x 250 W

Power Consumption

300 W

Dimensions

44 x 440 x 319 mm
1.7 x 17.3 x 12.6 in

Weight

3.8 kg, 8.4 lbs

Output Circuitry

UMAC™ Class D – full bandwidth PWM modulator with ultra-low distortion

Output Voltage

45Vrms (S.E) – 70/100V (Hi-Z)

Signal To Noise-Ratio

> 106 dB (A-weighted, 20 Hz – 20 kHz, 8 Ω load)

THD+N (typical)

< 0.05 % (20 Hz – 20 kHz, 8 Ω load, 3 dB below rated power)

Frequency Response

20 Hz – 20 kHz (+0/-0.25 dB (8 Ω load, 3 dB below rated power)

Protection Circuits

Short circuit protection, DC protection, under voltage protection, temperature protection, overload protection

Power Supply

UREC™ universal mains switch mode power supply with Power Factor Correction (PFC)
and integral standby converter

Operating Voltage/Frequency.

Universal Mains, 100-240V, 50-60Hz

Operating temperature

0-40°C

Standby Consumption

< 0.5 W (Energy Star & ErP 1275/2008/EC compliant)

Power Ratings

1% THD @ 120VAC and 230VAC

channels

8

Pastiprinātāji
100 V
Jauda (max), W 1000
Jauda, W 1000
Jauda 4 Ω, W 8x 125
Jauda 8 Ω, W 8x 125
Jauda (Bridge 4 Ω), W 4x 250
Jauda (Bridge 8 Ω), W 4x 250
Izeju skaits 8
Ieeju skaits 5
Augstums 1U
Funkcijas DSP
