Name: BLAZE AUDIO PowerZone™ Connect 504
Brand: BLAZE AUDIO
Price: 1199.00 EUR
Availability: OutOfStock

BLAZE AUDIO PowerZone™ Connect 504

Stock: ASK FOR AVEILABILITY
Brand: BLAZE AUDIO
Model: UBX-888-007

0 reviews - Write a review

1,199.00€

Ex Tax: 990.91€

Qty

Add to Cart

Add to Wish List Compare this Product

Ultra-compact ½-rack form factor

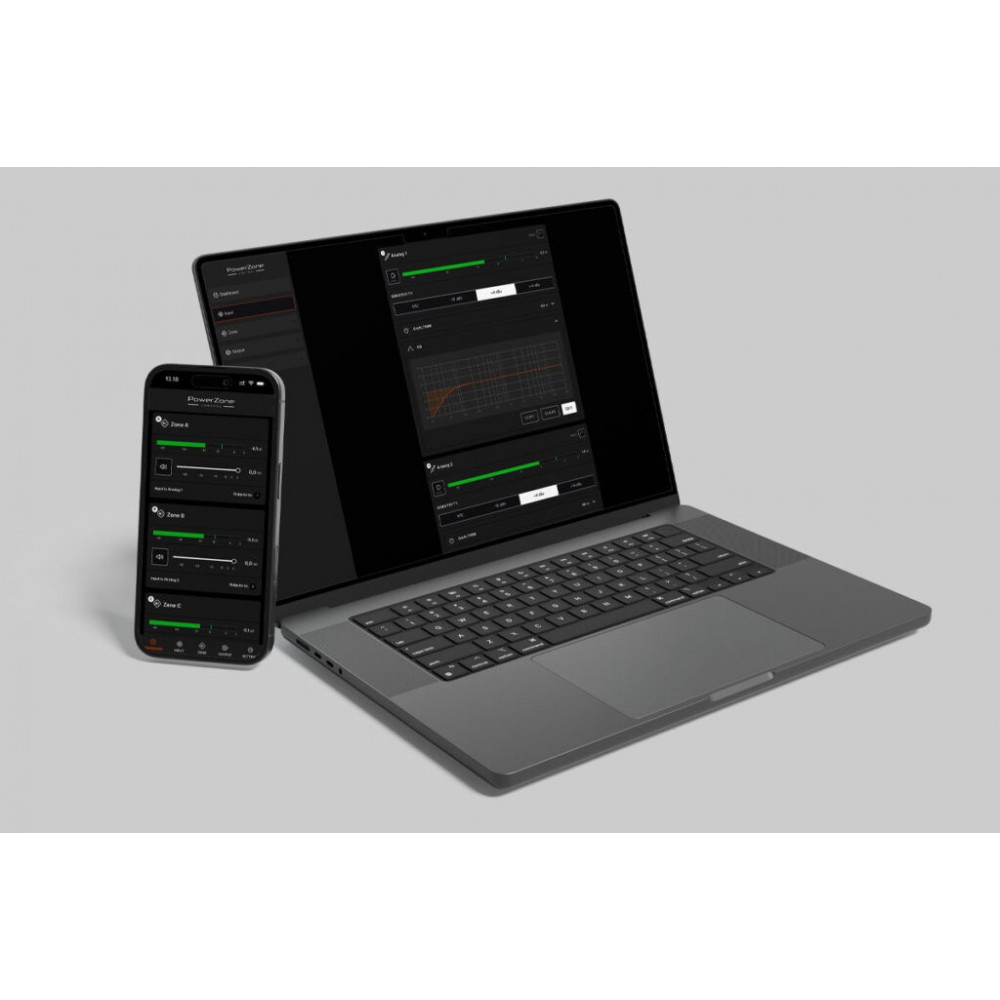

Full-matrix DSP configuration via PowerZone™ Control web app (built-in)
Hybrid power distribution in both Lo-Z and Hi-Z
Powered by Pascal UMAC™ Class-D technology
Flexible power sharing across output channels
S/PDIF input/output
Configurable GPIO
ErP and Energy Star compliant
UL listed audio equipment
UREC™ universal power supply with PFC 5 Year warranty

Total System Power	500 W
Output Power @ 4/8Ω	4 x 125 W
Output Power @ 70/100V*	2 x 250 W
Powershare (up to) Across all channels**	2 x 250 W
Power Consumption	150 W
Dimensions	44 x 220 x 319 mm 1.7 x 8.7 x 12.6 in
Weight	2.8kg, 6.2 lbs
Output Circuitry	UMAC™ Class D – full bandwidth PWM modulator with ultra-low distortion
Output Voltage	45Vrms (S.E) – 70/100V (Hi-Z)
Signal To Noise-Ratio	> 100 dB (A-weighted, 20 Hz – 20 kHz, 8 Ω load)
THD+N (typical)	< 0.05 % (20 Hz – 20 kHz, 8 Ω load, 3 dB below rated power)
Frequency Response	20 Hz – 20 kHz (+0/-0.25 dB (8 Ω load, 3 dB below rated power)
Protection Circuits	Short circuit protection, DC protection, under voltage protection, temperature protection, overload protection
Power Supply	UREC™ universal mains switch mode power supply with Power Factor Correction (PFC) and integral standby converter
Operating Voltage/Frequency.	Universal Mains, 100-240V, 50-60Hz
Operating temperature	0-40°C
Standby Consumption	< 0.5 W (Energy Star & ErP 1275/2008/EC compliant)
Power Ratings	1% THD @ 120VAC and 230VAC
channels	4

Amplifiers
100 V	Yes
Power (max), W	500
Power, W	500
Zones	4
Power 4 Ω, W	4x 125
Power 8 Ω, W	4x 125
Power (Bridge 4 Ω), W	2x 250
Power (Bridge 8 Ω), W	2x 250
Outputs	4
Inputs	5
Features	DSP
Height	1U
