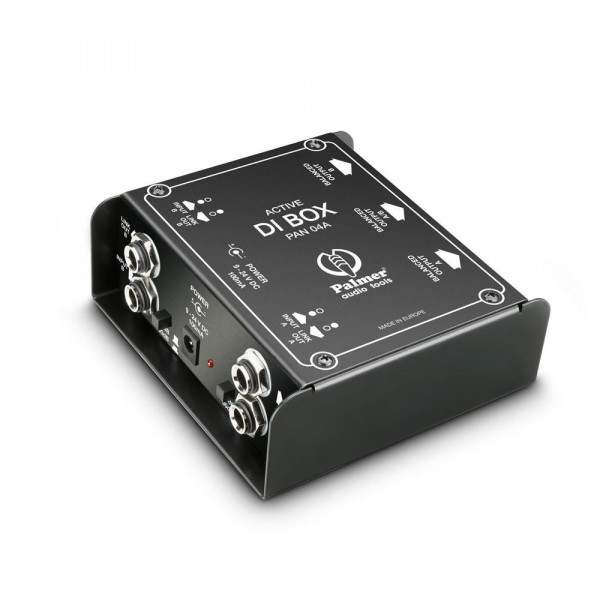

  • Active 2-channel DI box with premium balancing transformers
  • 10–40 kHz frequency response, high dynamic response
  • -30 dB input attenuation, switchable
  • Ground lift switch for each output
  • Balanced mono summed output
  • Can be powered with 9 to 24 V DC mains adapters or phantom power


Product type
DI Boxes
Type
active
Channels
2
Inputs
2
Input connectors
6.3 mm jack
Max. input level
+ 45 dBu
Input impedance
1M Ohm(s)
Outputs
3
THRU outputs/channel
1
Output connectors
6.3 mm jack, XLR
Max. output level
+ 11 dBu
Output impedance
200 Ohm(s)
Frequency response
10 - 40000
Transformer balanced
Yes
Ratio
1 : 1
Controls
attenuation, ground lift
Cabinet material
sheet steel
Cabinet surface
Powder coated
Width
116 mm
Depth
110 mm
Height
45 mm
Weight
0,47 kg
Signal Processing
Inputs 2
Outputs 2
Type Active
