IMG STAGE LINE MRD-120
- Pieejamība: SAZINIES PAR PIEEJAMĪBU
- Ražotājs: IMG Stage Line
- Modelis: 10.4110
76.90€
bez PVN: 63.55€
Sazinies ar mums
- PA horn driver, 50 W, 8 Ω
- 35 mm (1⅜") standard thread

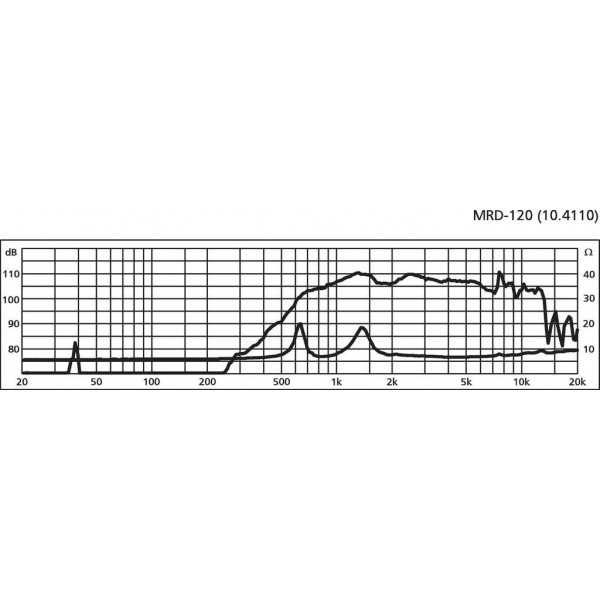

- Good, extensive frequency response linearity
- High sound pressure level with low distortions
- Excellent allround driver for almost any PA application, also in combination with 38 cm (15") bass-midrange speakers or in any multi-way system, of course
- Replacement voice coil MRD-120/VC is available at option
- Suitable for horns MRH-83, MRH-170 and MRH-80
Technical specifications MRD-120
- Impedance (Z): 8 Ω
- Frequency range: fx-17,500 Hz
- Resonant frequency (fs): 1,300 Hz
- Rec. crossov. frequ. (fmax.) (12 dB/oct.): 3,000 Hz
- Power rating (RMS): 50 W
- Peak music power output (MAX): 100 W
- Sensitivity: 107 dB/W/m
- Voice coil diameter: Ø 38 mm
- Magnet diameter: Ø 120 mm
- Mounting cutout: dep. on horn
- Mounting depth: dep. on horn
- Dimensions: Ø 120 mm x 85 mm
- Outside diameter: Ø 120 mm
- Width: Ø 120 mm
- Depth: 85 mm
- Admiss. ambient temp.: 0-40 °C
- Weight: 1.724 kg
Skaļruņi | |
Veids | Augsto frekvenču |
Peak jauda, W | 100 |
Pretestība, Ω | 8 |
RMS jauda, W | 50 |
Jūtība, dB | 107 |
