CELESTION
One of the most appealing names in the world of speakers. The speakers of the TF series impress by both an excellent price-performance ratio and very good sound characteristics and thus are ideally suited for an application in efficient PA speaker systems providing a powerful sound.

PA bass-midrange speaker, 100 W, 8 Ω
  • 16 cm (6") PA bass-midrange speaker providing an excellent sound with power reserves in the bass range down to approx. 100 Hz
  • High-quality Kevlar fibre-reinforced cellulose cone
  • 38 mm heat-resistant voice coil on a Kapton voice coil former
  • Excellent linear frequency response and wide bandwidth
  • Linear excursion (XMAX): ± 2.5 mm
  • Double-roll surround for an excellent linearity
  • Robust sheet steel basket
  • Ideally suited for compact PA top parts with subwoofer support

Technical specifications TF-0615
  • Impedance (Z): 8 Ω
  • Frequency range: f3-6,000 Hz
  • Resonant frequency (fs): 107 Hz
  • Power rating (RMS): 100 W
  • Peak music power output (MAX): 200 W
  • Sensitivity: 95 dB/W/m
  • Suspension compl. (Cms): 0.193 mm/N
  • Moving mass (Mms): 11.3 g
  • Mech. Q factor (Qms): 5.83
  • Electr. Q factor (Qes): 0.68
  • Total Q factor (Qts): 0.61
  • Equivalent volume (Vas): 6.5 l
  • DC resistance (Re): 7.2 Ω
  • Force factor (BxL): 9.03 Tm
  • Voice coil induct. (Le): 0.5 mH
  • Voice coil diameter: Ø 38 mm
  • Voice coil former: Kapton
  • Linear excursion (XMAX): ± 2.5 mm
  • Eff. cone area (Sd): 145 cm2
  • Magnet weight: 0.8 kg
  • Magnet diameter: Ø 115 mm

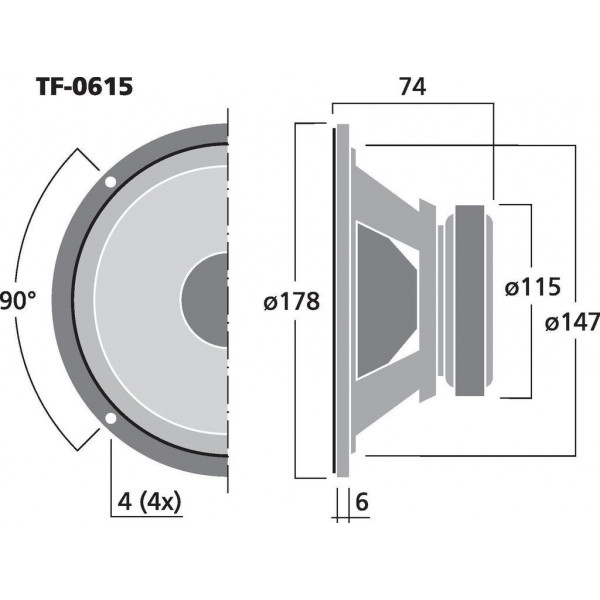

  • Mounting cutout: Ø 147 mm
  • Mounting depth: 65.5 mm
  • Mounting hole diameter: Ø 168.5 mm
  • Hole spacing X-axis: 119 mm
  • Hole spacing Y-axis: 119 mm
  • Dimensions: Ø 178 mm x 74 mm
  • Outside diameter: Ø 178 mm
  • Width: Ø 178 mm
  • Depth: 74 mm
  • Admiss. ambient temp.: 0-40 °C
  • Weight: 1.71 kg
  • Packing unit: 1
  • Type of speaker: 6"
Skaļruņi
Veids Zemo frekvenču
Izmērs, collas 6
Peak jauda, W 200
Pretestība, Ω 8
RMS jauda, W 100
Jūtība, dB 95
