Name: ALLEN & HEATH DX012
Brand: Allen and Heath
Price: 1699.00 EUR
Availability: OutOfStock

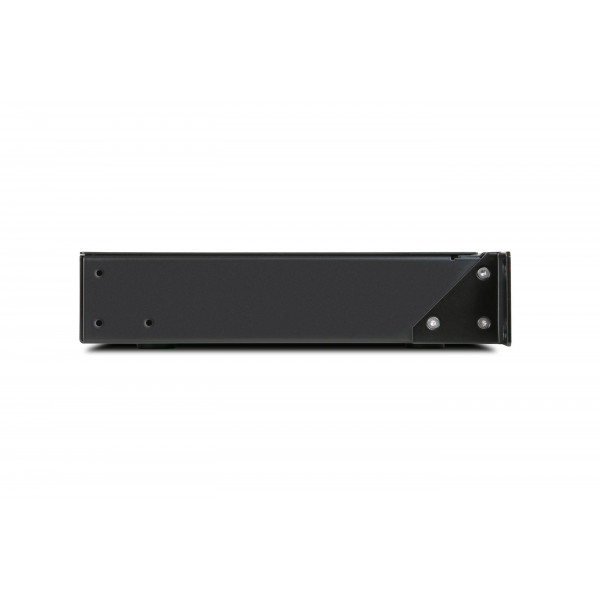

ALLEN & HEATH DX012

Pieejamība: SAZINIES PAR PIEEJAMĪBU
Ražotājs: Allen and Heath
Modelis: DX012

0 atsauksmes - Uzrakstīt atsauksmi par produktu

1,699.00€

bez PVN: 1,404.13€

Daudzums

Pievienot grozam

Buy Now Ask a question

Pievienot vēlmju sarakstam Salīdzināt šo produktu

2 XLR Output Analogue/AES Portable DX Expander

Need to get more out of your system? DX012 provides remote output expansion for SQ, Avantis and dLive mixers, and for the AHM-64 audio matrix processor.

Perfect for feeding IEM systems and amplifier racks, DX012 offers both analogue and AES digital output options in a compact 1U form factor.

Each DX012 provides 12 XLR outputs, configurable as:

12 analogue line outputs
8 analogue line outputs + 4 stereo AES outputs
4 analogue line outputs + 8 stereo AES outputs

The DX012 connects via a single Cat5e cable to the dLive Surface, dLive MixRack, AHM-64 mattrix processor, Avantis mixer, SQ mixer or upstream DX expander via a secure EtherCon port.

A second locking EtherCon port is provided for redundant connection to compatible hardware, or for daisy-chaining to a downstream DX expander for additional remote I/O.

Features

Compatible with SQ, Avantis and dLive systems
12 XLR Outputs:
1-4 Analogue Line Out
5-8 Analogue Line out or AES Digital out (switchable)
9-12 Analogue Line out or AES Digital out (switchable)
AES outputs globally switchable between:
44.1kHz
48kHz
88.2kHz
96kHz
Cascade mode allows daisy-chaining of up to 2 DX Expanders on each DX port
Redundant DX connection to compatible hardware
Multiple DX012 can be added to a system:
Up to 16 DX012 units can be added to a SQ system
Up to 16 DX012 units can be added to an Avantis system
Up to 46 DX012 units can be added to a dLive S Class system
Up to 22 DX012 units can be added to a dLive C Class system
Up to 8 DX012 units can be added to an AHM-64 system
Rack-mounted (1u) or shelf/floor operation
Plug and Play – no IP addressing required
Compatible with CAT5e (or higher) cables of up to 100m
Locking EtherCon ports

Mikserpultis
AUX kanālu skaits	12
Galvenās izejas	12
