EUROLITE LED PIX-40 RGB Bar

LED beam bar with narrow beam SMD LEDs (RGB) and pixel control

• 40 powerful LEDs 3 W SMD 3535 3in1 TCL RGB
  LEDs controlled separately
• Dimmer electronic; color blend stepless; background color adjustable; running light adjustable; program speed adjustable

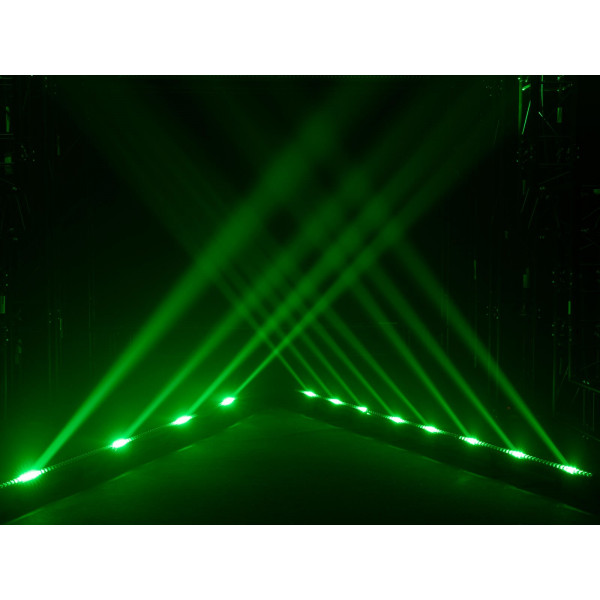

• Beam effect
• 30 integrated show programs
• Direct color selection
• The device is cooled by passive convection cooling
• Control via stand-alone; sound to light; master/slave function; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
• Preprogrammed in Light Captain; Colorchief
• Flicker-free
• With a beam angle of 2°
• With mounting bracket
• 4 digit 7-segment LED display
• Mains input and output for power linking up to 8 units
• For application areas such as: Clubs/dancing school; stage; mobile djs / entertainer; restaurants, bars and hotels; rental
• Silent operation
• Application possibility: Suspended

Power supply: 100-240 V AC, 50/60 Hz

Power consumption: 65 W

IP classification: IP20

Protection class: Protection class I

Power connection: Mains input via P-Con (blue), mounting version power supply cord with safety plug

Power output: P-Con (gray), mounting version

Device fuse: T 5 A fuse fix in power supply

Lamp type: LED lamp

LED type: 40 x 3 W SMD 3535 3in1 TCL RGB

Flash rate: 0,7 - 22 Hz

DMX channels: 3; 11; 120

DMX input: 3-pin XLR (M) mounting version

DMX output: 3-pin XLR (F) mounting version

Cooling: Passive convection cooling

Control: Stand-alone; sound to light; master/slave function; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)

Preprogrammed in: Light Captain; Colorchief

Projection: Flicker-free

PWM frequency: 12300 Hz

Beam angle: 2°

Beam angle (1/2 peak): 2°

Beam angle (1/10 peak): 5

Housing color: Black

Attachment system: Mounting bracket

Display type: 4 digit 7-segment LED display

Dimensions: Length: 100,5 cm

Depth: 8,0 cm

Height: 11,5 cm

Weight: 3,25 kg

Noise classification: Class 0 (no noise at all)

Legal specifications

Special product: Not designed for household room illumination

Intended use: Show effect lighting
