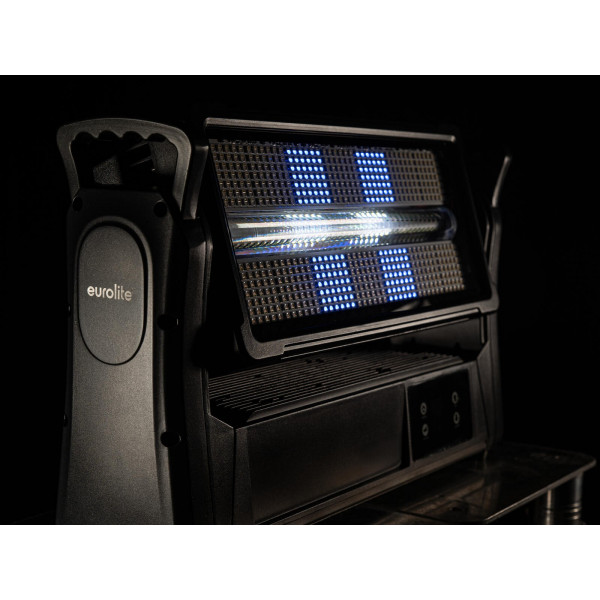

EUROLITE LED IP Mega PIX Strobe 714 Swing

Outdoor spotlight (IP65) with tilt motor for strobe, blinder and matrix effects

• 126 powerful LEDs 3 W SMD 3535 cold white (CW)
  7 segments controlled separately
• 588 powerful LEDs 0,25 W SMD 5050 4in1 QCL RGBW (homogenous color mix)
  14 segments controlled separately
• Positioning within 200° TILT
• Dimmer
• Color macros adjustable; background color adjustable; Dimmer electronic; color blend stepless; program speed adjustable; program selection adjustable; running light adjustable
• Matrix effect; strobe effect; Blinder effect
• 46 integrated show programs
• The device is cooled by cooling fan at the base; temperature-controlled fan at the Head
• Control via DMX; RDM; stand-alone; master/slave function
• Flicker-free
• With a beam angle of 120°
• With omega bracket
• Multicolor TFT display
• 2 Rugged carrying handles
• 4 x rubber feet
• Mains input and output for power linking up to 8 units
• Built with SEETRONIC connector
• Suitable for outdoor use IP65
• With pressure compensation membrane
• For application areas such as: Architecture; mobile use; stage; rental
• Application possibility: Standing; suspended

Package contents

• 1 x device, 1 x user manual, 1 x power cord, 2 x omega bracket

Power supply: 100-240 V AC, 50/60 Hz

Power consumption: 365 W

IP classification: IP65

Protection class: Protection class I

Power connection: Mains input via IP T-Con (M) mounting version power supply cord with safety plug

Cable construction: 3 x 1,5 mm² H07RN-F

Power output: IP T-Con (F) mounting version

Lamp type: LED lamp

LED type: 126 x 3 W SMD 3535 cold white (CW)

588 x 0,25 W SMD 5050 4in1 QCL RGBW (homogenous color mix)

Max. TILT movement: 200° positioning auto position correction (feedback)

Flash rate: 0,5 - 17 Hz

Equipment: Dimmer

DMX channels: 8; 9; 11; 12; 17; 18; 71

DMX input: 3-pin XLR (M) mounting version IP

1 x 5-pin XLR (M) mounting version IP

DMX output: 3-pin XLR (F) mounting version IP

1 x 5-pin XLR (F) mounting version IP

Cooling: 1 x cooling fan at the base

2 x temperature-controlled fan at the Head

Control: DMX; RDM; stand-alone; master/slave function

Projection: Flicker-free

PWM frequency: 4100 Hz

Beam angle: 120°

Beam angle (1/2 peak): Matrix effect 120°

Beam angle (1/10 peak): Matrix effect 170°

Housing color: Black

Attachment system: 2x omega bracket

Display type: Multicolor TFT display

Carrying handle: 2 pc/pcs

Transport aid: 4 x rubber feet

Use of brands: Built with SEETRONIC connector

Material: Aluminum casting

Dimensions: Width: 52,5 cm

Depth: 14,0 cm

Height: 33,5 cm

Weight: 12,85 kg

Noise classification: Class 2 (slight noise)

Legal specifications

Special product: Not designed for household room illumination

Intended use: Show effect lighting
