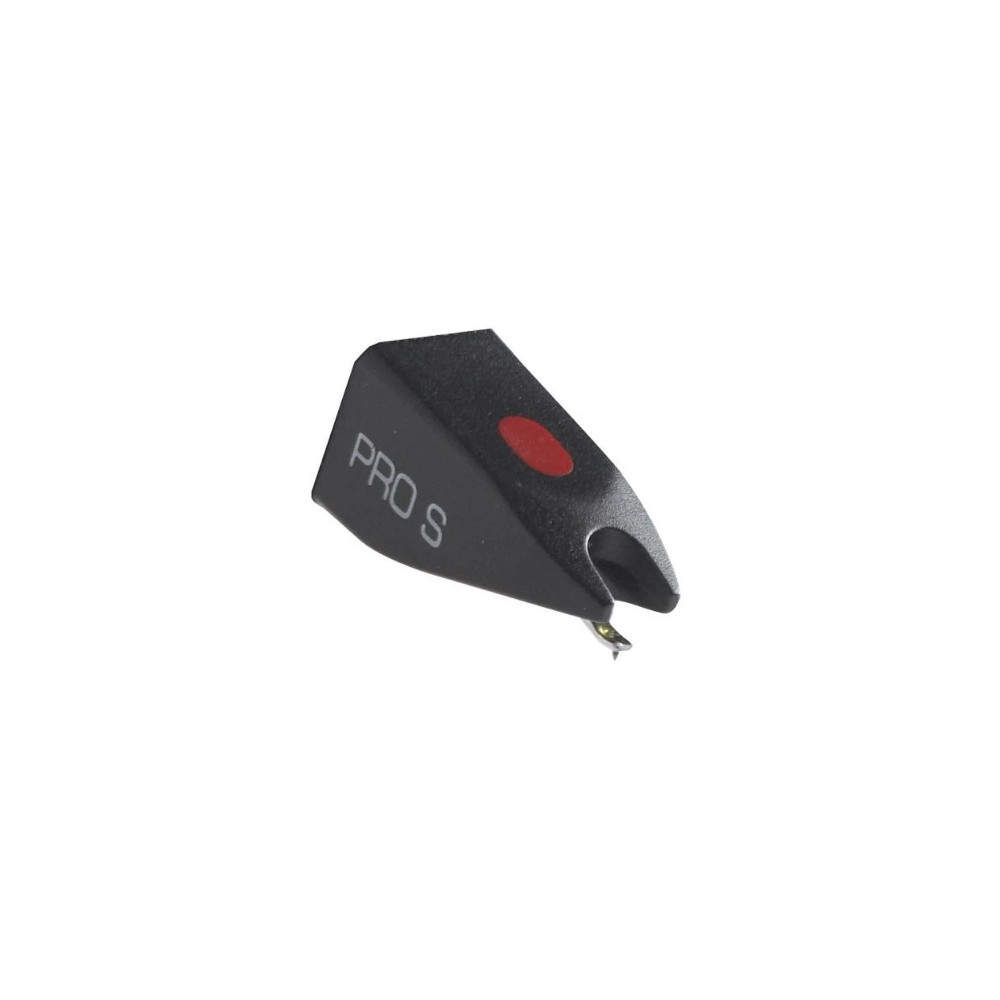

ORTOFON PRO S

The Pro S entry-level cartridge is perfect for newcomers on the DJ scene who want to start off with decent but not too expensive equipment.

The Pro S has a spherical diamond stylus which minimizes scratching and a solid cantilever which can survive hectic activity at the turntable.

No matter what the application, the Pro S provides remarkable versatility for virtually any setting and is a consistent performer and a fine all-arounder!

• Channel balance at 1 kHz
  2 dB
• Output voltage at 1 kHz, 5cm/sec
  5 mV
• Channel separation at 1 kHz
  20 dB
• Frequency response 20 Hz - 20 kHz
  +/-2 dB
• Tracking ability at 315 Hz
  70 μm
• Compliance, dynamic, lateral
  7 μm/m N
• Stylus type
  Spherical
• Stylus tip radius
  R 18 μm
• Tracking force range
  3.0-5.0 g (30-50 mN)
• Tracking force, recommended
  4.0 g (40 mN)
• Tracking angle
  20°
• Internal impedance, DC resistance
  750 Ohm
• Cartridge weight
  18.5 g / 5.0 g
• Recommended load resistance
  47 kOhm
• Internal inductance
  450 mH
• Recommended load capacitance
  200-600 pF
