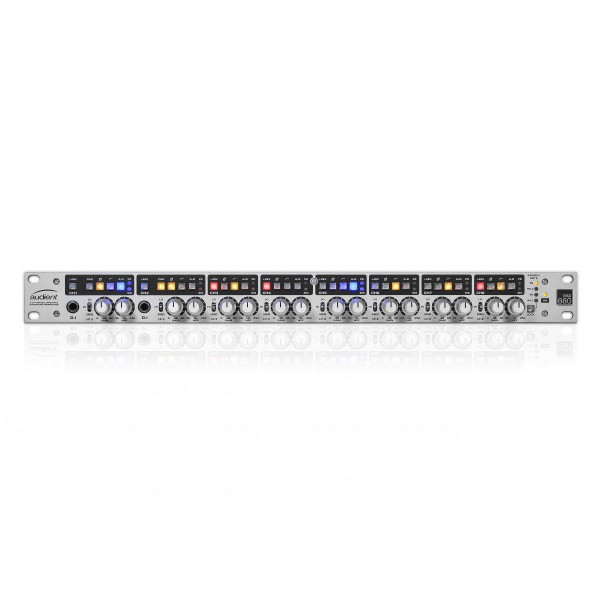

AUDIENT ASP 880

ASP880

Specifications

Microphone preamplifiers:

MIC GAIN: -10 to +60dB (-10dB Pad)

LINE GAIN: -16 to +44dB (-10dB Pad)*

PHANTOM POWER: 48v +/-4v @ 10mA/Channel

MIC EIN: <-127.5dBu

CMRR: >80dB @ 100 to 10kHz

MAXIMUM INPUT LEVEL: +22dBu (+32dBu with Pad)

INPUT IMPEDANCE: Mic LO: 220Ω Balanced, Mic MED: 1k2Ω Balanced, Mic HI: 2k8Ω Balanced, Line (All Z): >6kΩ Balanced

FREQUENCY RESPONSE: +/-0.5dB 10Hz to 100kHz

CROSSTALK: <-85dBu @ 1kHz & 10kHz

THD+N @ 0dBu (1kHz): 0.003% (-90.5dBu)

SNR: >90dB

HPF: Sweepable from 25Hz to 250 Hz, 2nd Order (12dB/Octave)

XLR: Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)

1/4” JACK: TIP (Hot), RING (Cold) & SLEEVE (Shield)

* Line input level at the combi jacks will be affected by the input impedance switch position, this can be used as a second pad control to adjust line input ranges on all channels.

Discrete JFET D.I (Channels 1 & 2)

D.I GAIN: -10 to +60 dB (-10dB Pad)

MAXIMUM INPUT LEVEL: +16dBu (typical), +22dBu

INPUT IMPEDANCE: 1MegΩ Unbalanced

FREQUENCY RESPONSE: +/-0.5dB 10Hz to 50kHz

THD+N @ 0dBu (1kHz): <0.03% (-70dBu)

SNR: 89dB

1/4” JACK: TIP (Hot) & SLEEVE (Shield)

Line Outputs (Insert Sends):

MAXIMUM OUTPUT LEVEL: +27.5dBu

OUTPUT IMPEDANCE: <100Ω Balanced

ADC Line Inputs (Insert Returns):

MAXIMUM INPUT LEVEL: +18dBu

DIGITAL REFERENCE LEVEL: 0dBFS = +18dBu

DINPUT IMPEDANCE: >10kΩ Balanced

FREQUENCY RESPONSE: +/-0.5dB 10Hz to Fs/2

CROSSTALK: <-80dBu @ 1kHz & 10kHz

THD+N @ -1dBFS (1kHz): <0.002% (-94dB)

THD+N @ -6dBFS (1kHz): <0.002% (-94dB)

DYNAMIC RANGE: 113dB un-weighted, 115dB A-weighted

PEAK LED LINEUP: +16dBu (-2dBFS)

SIGNAL LED LINEUP: Variable Brightness from -30dBu to -10dBu (-28dBFS)

Digital i/o:

ADAT 8 CHANNELS SMUX: 44.1 – 96kHz

AES | S/PDIF 8 CHANNELS: 44.1 – 96kHz

CLOCK: Internal or External

WORLDCLOCK INPUT: 75Ω BNC, Optional 75Ω Termination

Power Supply:

High stability, low noise internal SMPS

Fan-less, quiet operation

Works anywhere in the world without reconfiguring

LINE VOLTAGES: 90 to 264V (a.c)

INTERNAL RAILS: +/-18VDC, +48VDC & +5VDC

FUSE: T1A (1Amp Time Delay)

CONSUMPTION: Maximum 40 Watts

WEIGHT: 4.0kg
