IMG STAGE LINE MFE-212

IMG STAGE LINE MFE-212
IMG STAGE LINE MFE-212
IMG STAGE LINE MFE-212
IMG STAGE LINE MFE-212
MFE-212
  • Stereo DSP feedback controller
  • Prevents acoustic feedback appearing in PA systems
  • 12 steep-edged precision notch filters for each stereo channel
  • Editable filter parameters (supplied with software)
  • 4 factory presets, 16 user presets
  • Mono operation or 2-channel operation possible
  • AD/DA resolution: 24 bits
  • 45 dB attenuation (with gradual reduction in variable mode)
  • Optionally continuous signal monitoring (auto notch) or manual setting of the required filters (manual notch)
  • Backlit 2 x 20 dot matrix display
  • Adjustable input level and output level
  • Bypass function
  • Clip LED
  • Balanced inputs and outputs: XLR and 6.3 mm jack
  • USB port (Type-A)
  • MIDI input and output
  • 482 mm (19") rack installation, 1 RS
  • Xound 2014/6

TECHNICAL SPECIFICATIONS MFE-212
MFE-212
  • Description: feedback controller
  • Frequency range: 20-20,000 Hz
  • Input signal: 2.2 V max.
  • Output signal: 2.2 V max.
  • S/N ratio: > 90 dB
  • THD: < 0.01%
  • Admiss. ambient temp.: 0-40 °C
  • Power supply: ˜ 230 V/50 Hz/20 VA
  • Dimensions: 482 x 44 x 193 mm, 1 RS
  • Weight: 2 kg

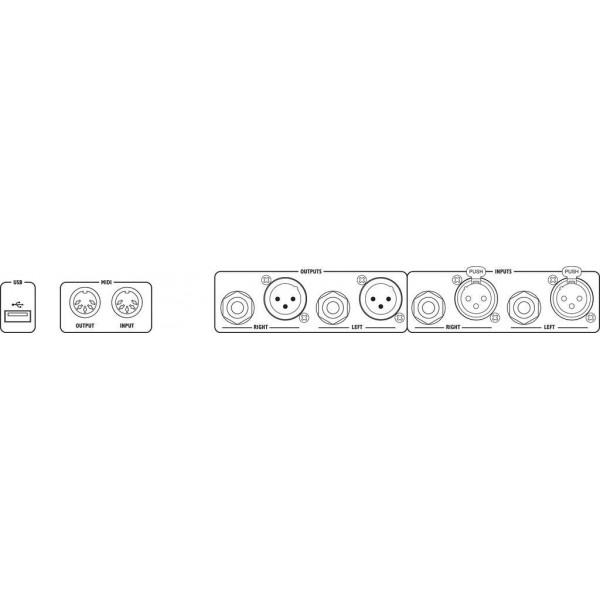

Inputs:
  • 1 x XLR L/R, bal. (line)
  • 1 x 6.3 mm jack L/R (line)

Outputs:
  • 1 x XLR L/R, bal. (line)
  • 1 x 6.3 mm jack L/R (line)

Other features:
  • MIDI in/out (2 x 5-pole DIN)
  • USB Type-A jack
Signal Processing
Inputs 2
Outputs 2
