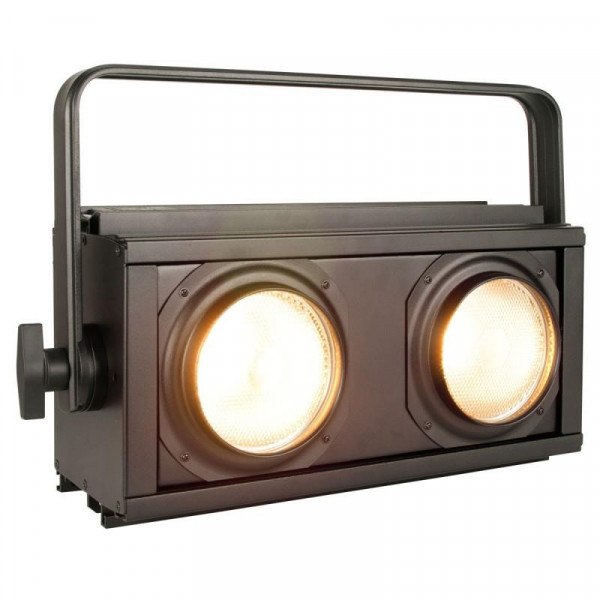

ADJ Encore Burst 200

The fixture features a Tungsten Mode effect that replicates a halogen-like dimming profile.

Specifications:

Source

• Light Source: 2x WW CREE COB-LEDs

• Individual LED wattage : 110W

• Average LED lifetime : approximately 50,000 hrs.

• Color temperature : 2700K (1200K Tungsten Mode)

Optics

• Beam Angle: 50 degrees

• Manual adjustment of lens position -15 to +15 degrees

Control

• 3 operational Modes : Manual Dimmer Mode, Tungsten Mode and DMX Control

• 6 DMX Modes: 1, 2, 2A, 3, 4 & 6-channel

• Individual Pixel Control

• RDM compatible

• 16bit Electronic Dimming: 0 - 100%

• 6 selectable Dim Curves (Standard, Stage, TV, Architectural, Theatre & Stage 2)

• Adjustable LED refresh Rate : 900Hz - 25kHz

• Adjustable Gamma Brightness : 1.0/2.0/2.2/2.4/2.8

• LED pulse and strobe effect

• 4-button, DMX digital display on rear panel

Colors

• Warm White 2700K (1200K Tungsten Mode)

Construction

• Metal Housing

• IP Rating: IPX4

• Can be assembled in vertical or horizontal fixture clusters

• Yoke and omega bracket included

Electrical

• Multivoltage 100-240V 50/60Hz

• Power Consumption: 235W

Connections

• 5-pin IP65 Locking DMX In/Out connections

• IP65 Locking Power In/Out connections

Dimensions & Weight

• Dimensions (LxWxH):

  Fixture only : 400 x 200.5 x 215.5mm

  With bracket : 400 x 200.5 x 264mm

  With Yoke : 503 x 200.5 x 325.3mm

• Weight: 6,8 kg.
