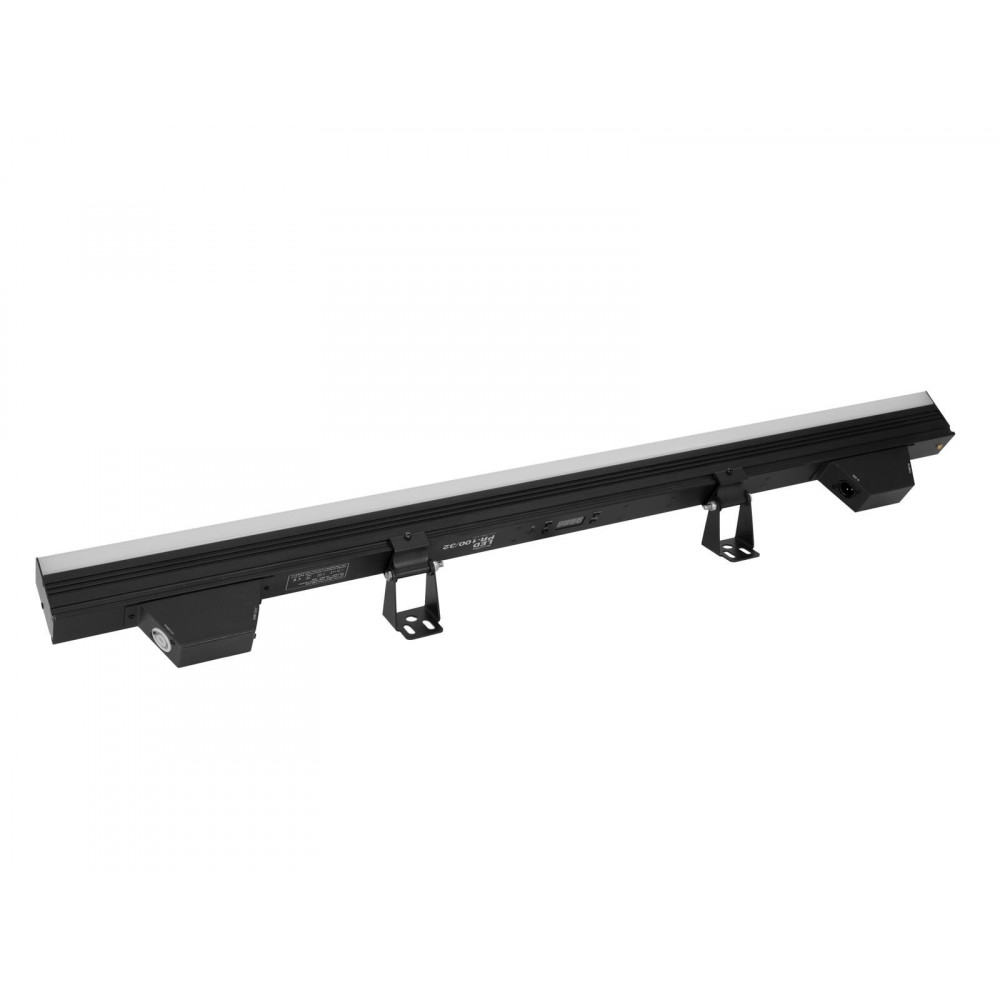

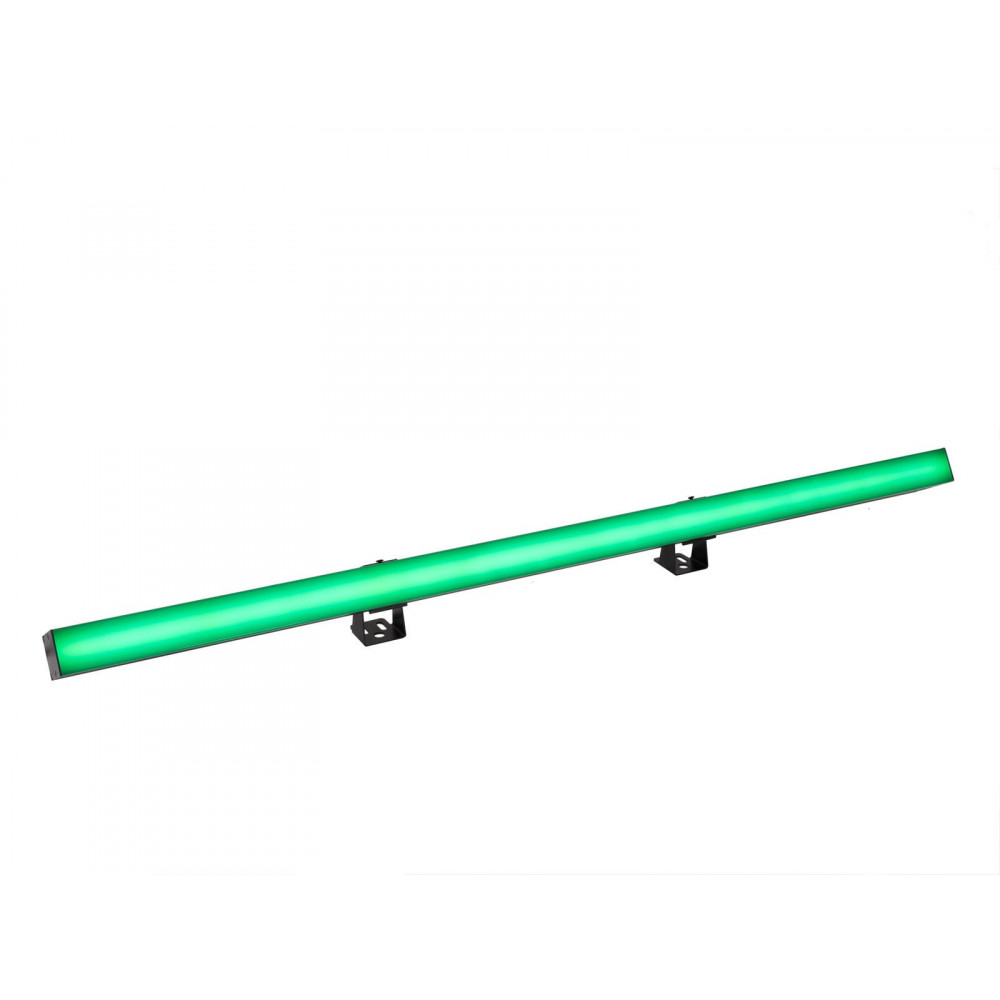

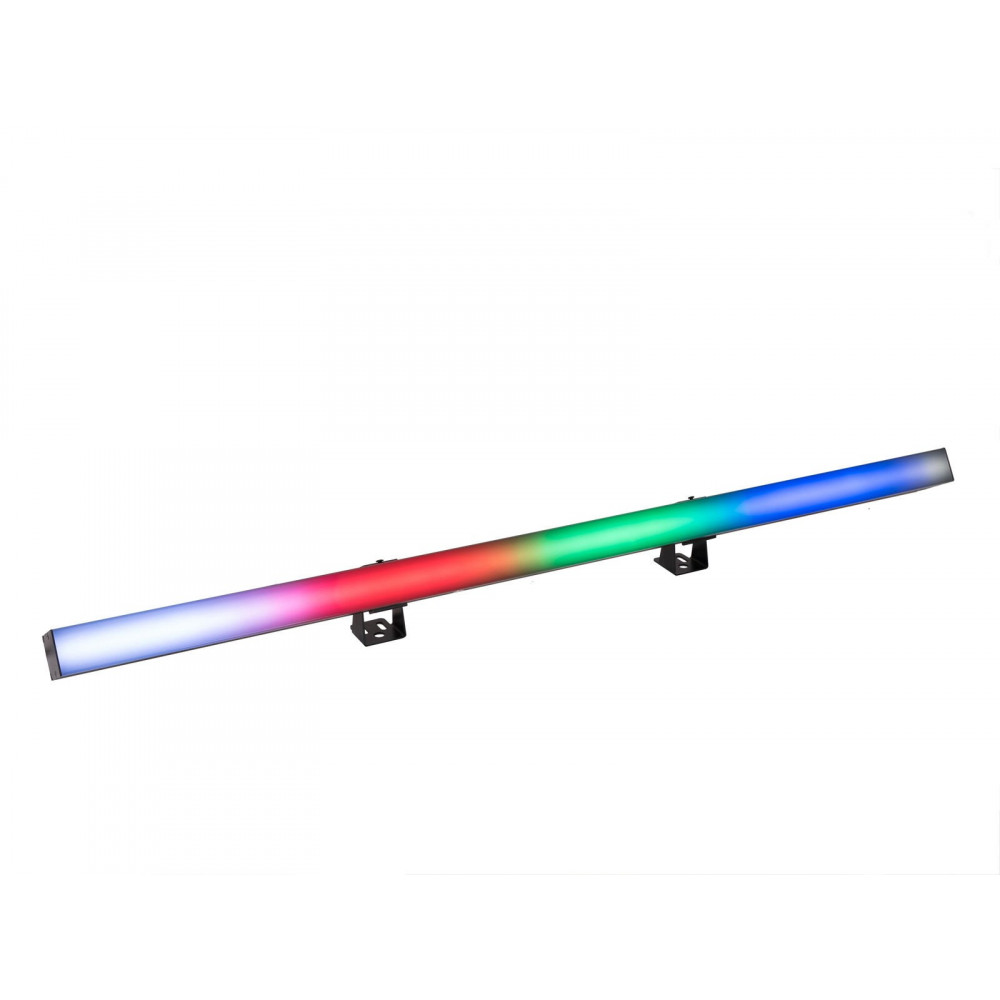

EUROLITE PR-100/32 Pixel DMX rail

DMX controlled pixel tube with RGB color mixing

• DMX and power terminals intelligently designed for easy wiring
• Front cover: milky
• 96 powerful LEDs SMD 5050 3in1 TCL RGB (homogenous color mix)
  32 segments controlled separately
• Color blend stepless; color change adjustable; colors preset; Dimmer electronic
• 12 integrated show programs
• Direct color selection for 17 preset colors
• The device is cooled by passive convection cooling
• Control via stand-alone; DMX; sound to light via microphone
• Preprogrammed in Light Captain
• With a beam angle of 120°
• With mounting bracket
• 4 digit 7-segment LED display
• Mains input and output for power linking up to 8 units
• For application areas such as: Clubs/dancing school; Trade fair and shop fitting; stage; restaurants, bars and hotels
• Silent operation
• Application possibility: Suspended; wall mounting

Package contents

• 1 x light effect, 1 x user manual, 1 x power cord

Power supply: 100-240 V AC, 50/60 Hz

Power consumption: 30 W

IP classification: IP20

Protection class: Protection class I

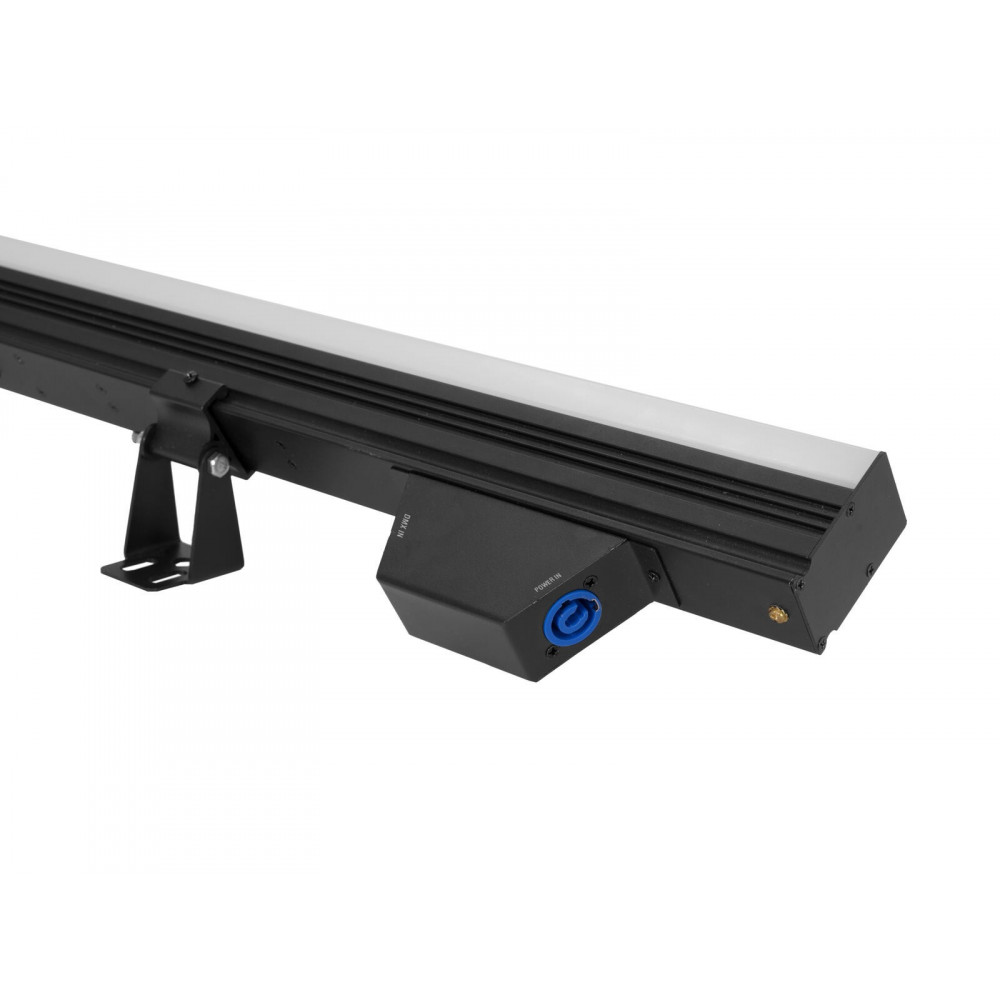

Power connection: Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)

Power output: 1 x P-Con (gray), mounting version

Lamp type: LED lamp

LED type: 96 x SMD 5050 3in1 TCL RGB (homogenous color mix)

Flash rate: 0,25 - 10 Hz

DMX channels: 3; 5; 8; 48; 96

DMX input: 3-pin XLR (M) mounting version

DMX output: 3-pin XLR (F) mounting version

Cooling: Passive convection cooling

Control: Stand-alone; DMX; sound to light via microphone

Preprogrammed in: Light Captain

Beam angle: 120°

Beam angle (1/2 peak): 120°

Housing color: Black

Attachment system: Mounting bracket

Display type: 4 digit 7-segment LED display

Dimensions: Length: 99,9 cm

Width: 5,95 cm

Height: 13,2 cm

Weight: 2,10 kg

Noise classification: Class 0 (no noise at all)

Legal specifications

Special product: Not designed for household room illumination

Intended use: Show effect lighting
