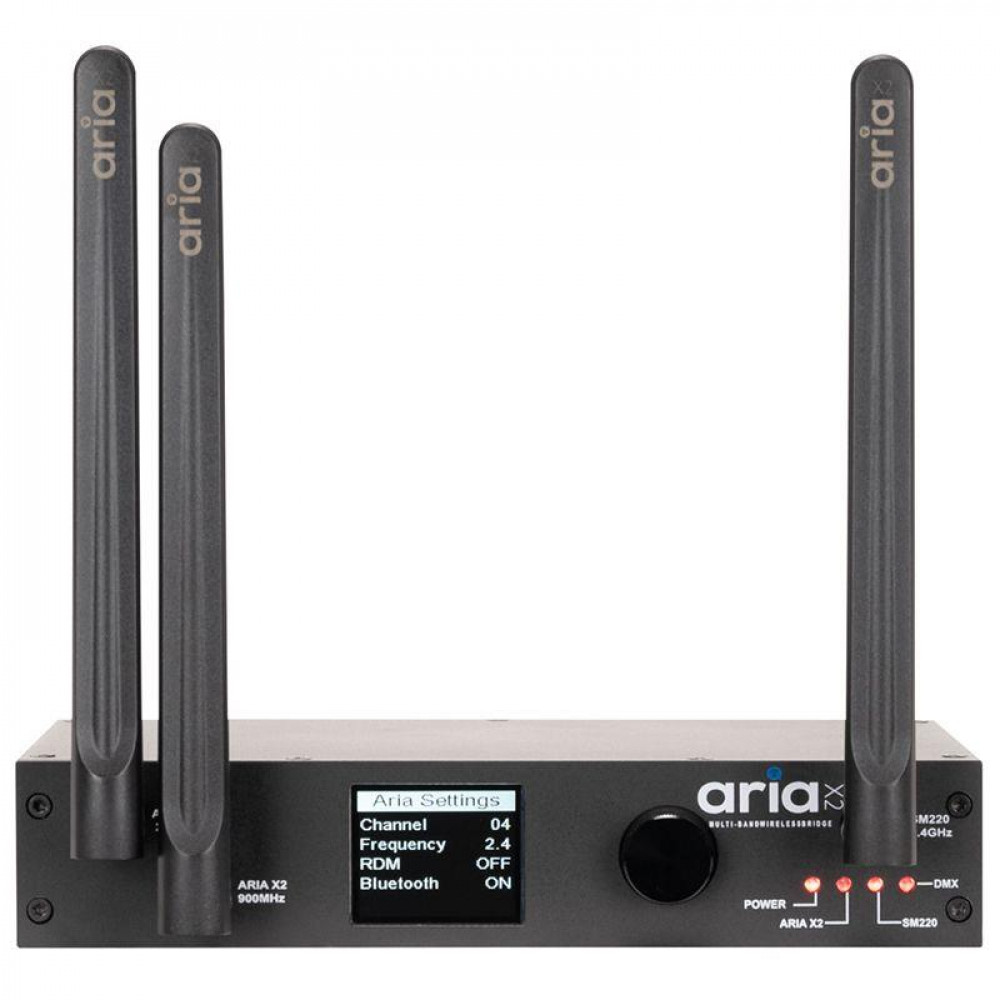

ADJ Aria X2 Bridge
- Pieejamība: IR VEIKALĀ
- Ražotājs: ADJ
- Modelis: 1321000090
399.00€
bez PVN: 329.75€
Sazinies ar mums
Key Features
Connections
• Single DMX Universe
• 900Mhz., 2.4 GHz WiFi and Bluetooth
• Single DMX Universe
• 900Mhz., 2.4 GHz WiFi and Bluetooth
Construction
• IP20 Aluminum / Metal enclosure
• M10 and M12 Threads
• Safety Eyelet
• IP20 Aluminum / Metal enclosure
• M10 and M12 Threads
• Safety Eyelet
Control
• Configuration via App (Coming Soon) or Front panel
• Wireless to DMX or DMX to Wireless
• Configuration via App (Coming Soon) or Front panel
• Wireless to DMX or DMX to Wireless
Specification
- • Single DMX Universe
- • 900Mhz., 2.4 GHz WiFi and Bluetooth
- • Configuration via App (Coming Soon) or Front panel
- • Wireless to DMX or DMX to Wireless
- • Aria X2 to SM220 (eFly, WiFly, MagFly and Acclaim Aria)
- • SM220 (eFly, WiFly, MagFly and Acclaim Aria) to Aria X2
- • DMX
- • RDM (Planned for future software release)
- • Proprietary 802.15.4
- • Aria X2 Mesh Protocol (Planned for future software release)
- • Bluetooth 5.2 (BLE)
- • Aria X2 Serial Protocol
- • This is our proprietary serial protocol for communicating with a variety of fixtures.
- • Frequency range
- • 2404-2480 MHz
- • 863-870 MHz (EU)
- • 902-928 MHz
- • Radio module: Aria X2
- • Interference mitigation
- • CSMA
- • Adaptive frequency hopping (on the roadmap)
- • OTA updates
- • Antenna: 5G JT SMA

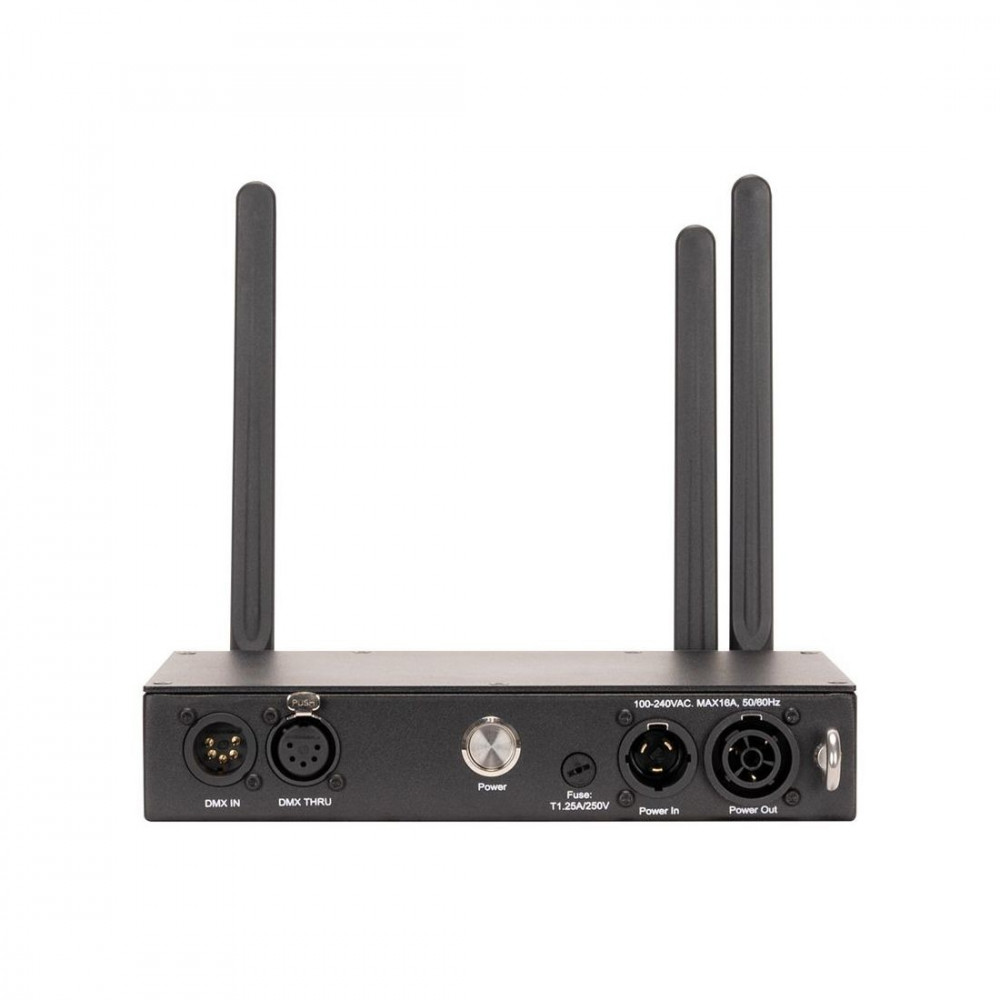

- • DMX: 5-pin XLR Input and Output
- • DC: 2.5mm/5.5mm Barrel connector
- • Outdoor Locking Power Input and Output
- • AC100-240V 50/60Hz
- • Power Consumption: 2W
- • Power Fuse: T1.25A/250V. (5 x 20mm)
- • IP20 Aluminum / Metal enclosure

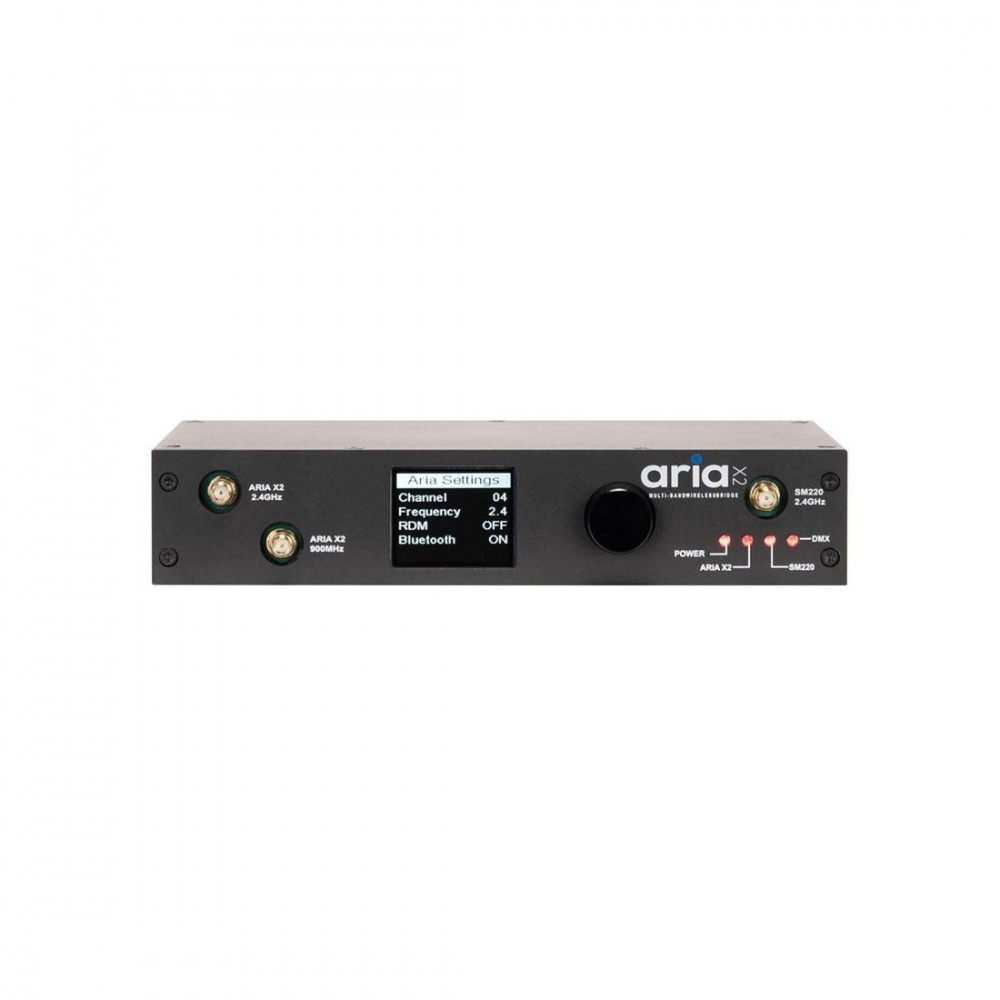

- • Front panel digital screen and rotary knob
- • M10 and M12 Threads
- • Safety Eyelet
- • Max ambient operating temp: 45°C
- • Max operating humidity: 75%
- • Storage temperature: 25°C
- • Rack and wall mount accessories
- • Length: 163.95mm
- • Width: 215.30mm
- • Height: 42mm
- • 1.23kgs
