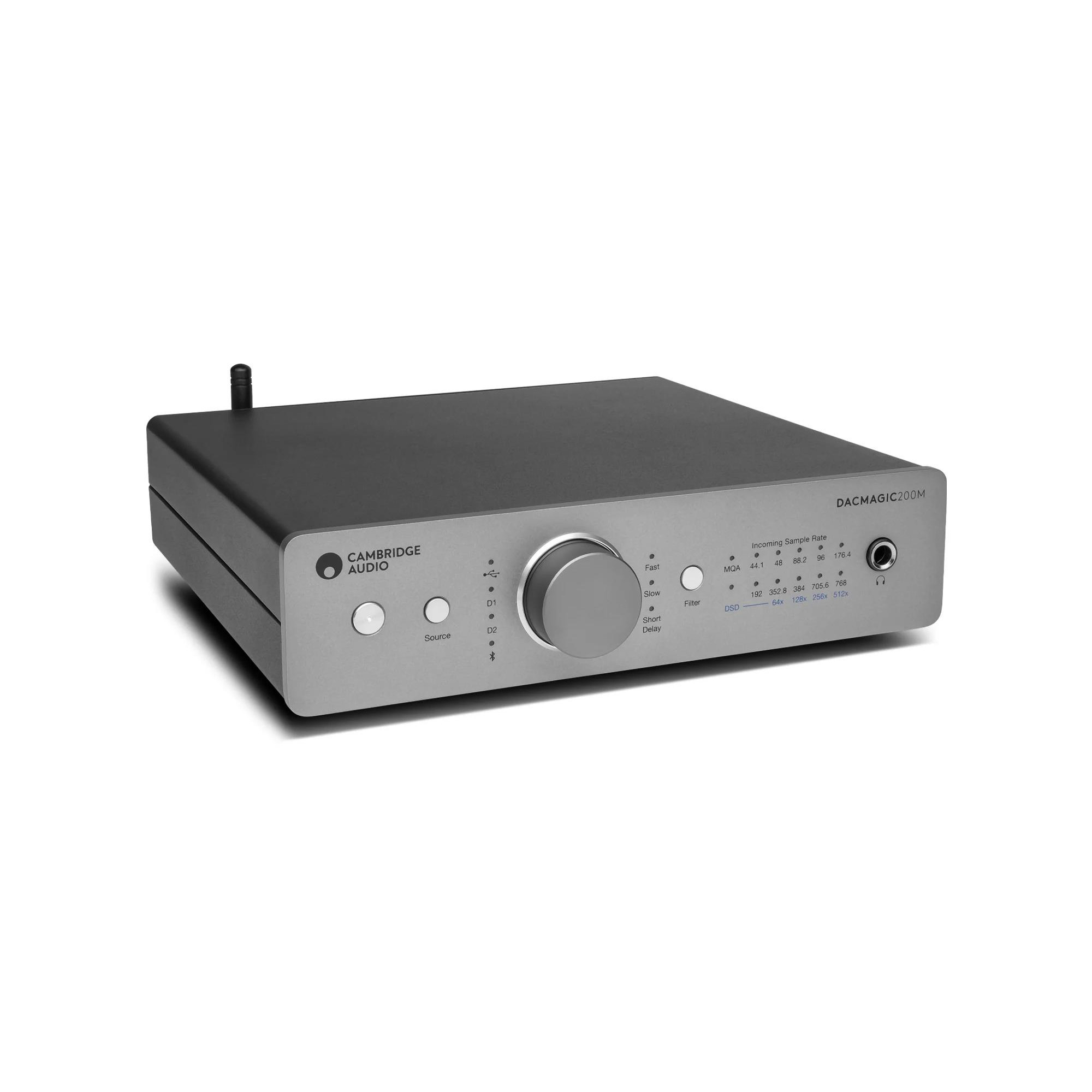

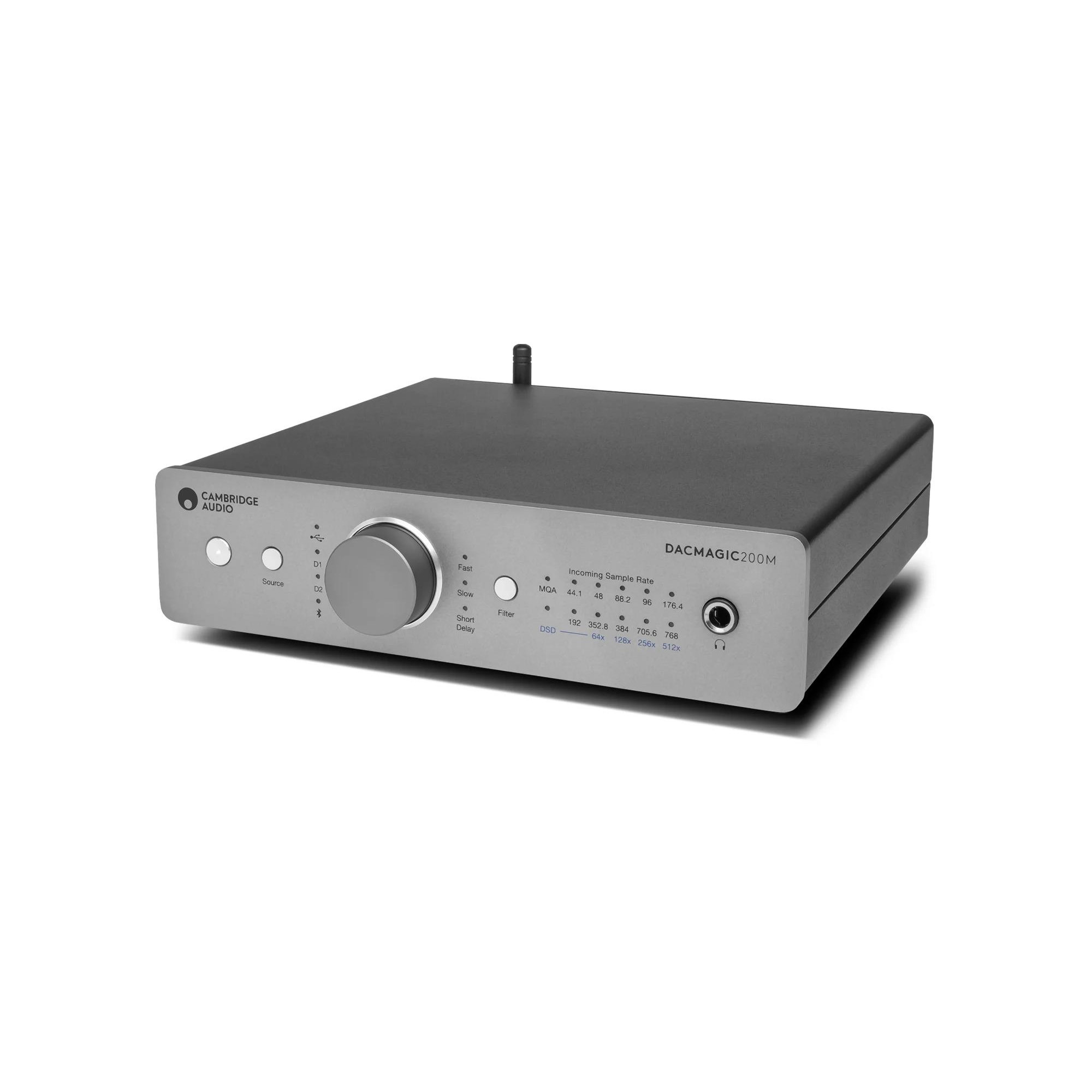

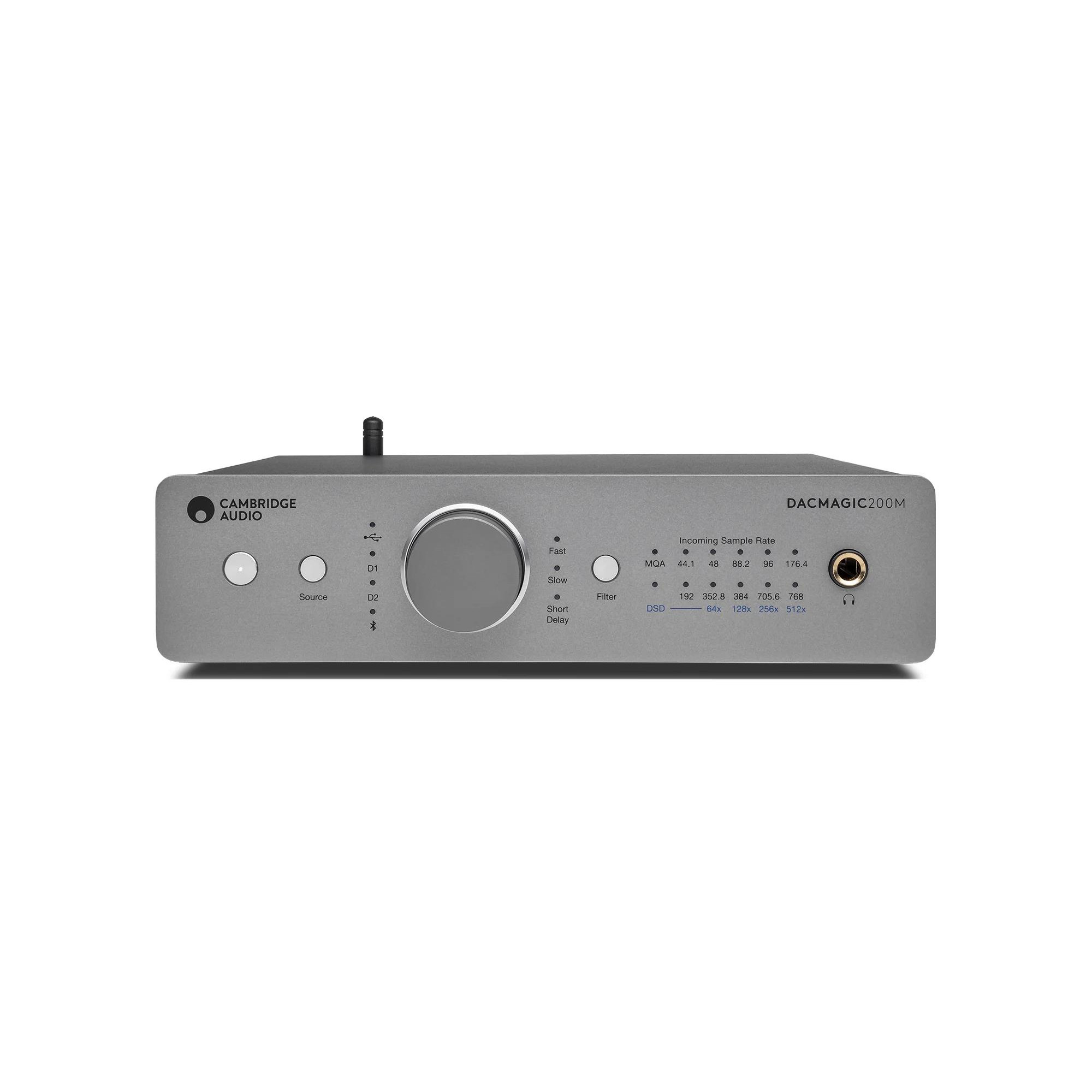

Cambridge Audio DacMagic 200M

DacMagic 200M- Digital to Analogue Converter

Studio quality audio.
DacMagic 200M is Cambridge Audio’s first product to support MQA.
MQA is an award-winning British technology that delivers studio-quality sound in a file small enough to stream. TIDAL, for instance, uses MQA technology to deliver master-quality sound in their Hi-Fi membership. Cambridge Audio’s DacMagic 200M can fully decode and playback MQA files, so they sound exactly like the original studio recording.
On the product, look out for the blue MQA indicator. This indicates you are playing an MQA Studio file, which has either been approved in the studio by the artist or producer, or has been verified by the copyright owner. The green indicator is confirmation you are playing and decoding an MQA music file.

Powerful processing.
At the heart of the DacMagic 200M is a pair of extremely high-quality ESS Sabre digital- to-analogue converters. They handle digital audio files up to 32bit/768kHz or DSD512, so they can deal with digital music of any kind stored on CDs, smartphones, computers - or anywhere else, for that matter.
Once a digital file is onboard DacMagic 200M, its twin DACs convert it to analogue information with all of its dynamics and detail intact. And because the analogue signal it sends to your audio set-up is so astonishingly free of distortion, so precise and so lifelike, your system will sound more convincing and complete than it ever has before.

Well connected.

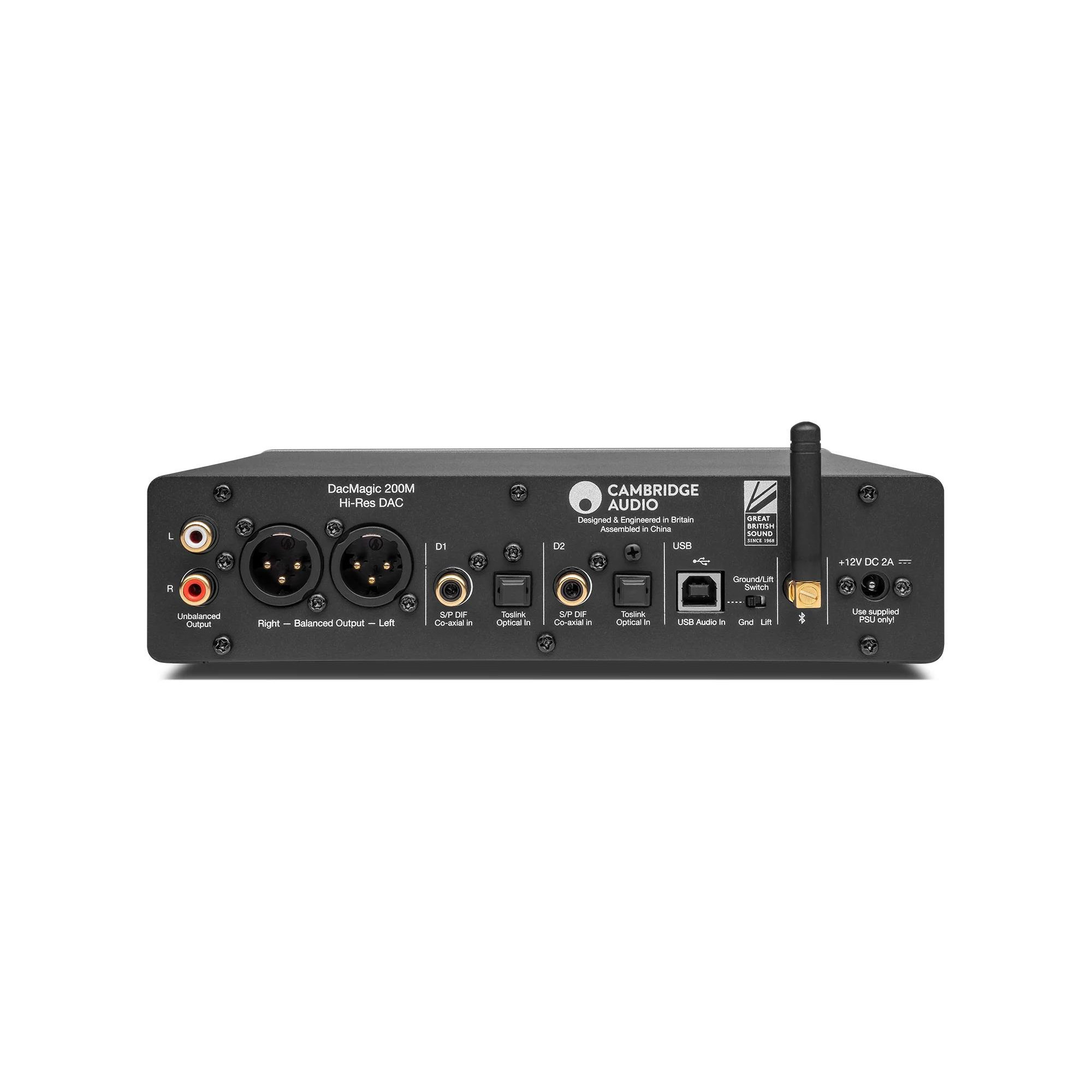

It’s possible to get digital audio files into DacMagic 200M in any number of ways. Digital optical, digital coaxial and USB inputs mean CD players, games consoles, laptops or any other digital equipment can be easily hooked up - and Bluetooth aptX reception means it’s just as straightforward to wirelessly deliver files from your smartphone or tablet too.
DacMagic 200M has both balanced and unbalanced analogue outputs, so can be easily connected to audio systems of all types, and switchable filters to give you different sonic options. And as well as its ability to deliver stunning sound to your speakers, it has a high-quality headphone amplifier with 6.3mm output on board too. So you can enjoy DacMagic 200M’s thrilling sound quality in private – at whatever volume you like.

Easy integration.
Despite the incredible number of features, the extensive functionality and the extraordinary technology on board the DacMagic 200M, Cambridge Audio has managed to fit it all into a beautifully built, flawlessly finished steel and aluminium box measuring just 52 x 215 x 191mm.
This means it will fit neatly and discreetly into any existing audio set-up without taking up loads of room or drawing too much attention to itself. All that’s required is a balanced or unbalanced connection to your system (and some mains power, of course) for DacMagic 200M to deliver you a sonic upgrade that’s way bigger than the box it comes from.

The details
  • DIGITAL TO ANALOGUE CONVERTERS: Dual ESS ES9028Q2M DACs
  • DIGITAL FILTER: Selectable, Fast – Slow – Short delay
  • FREQUENCY RESPONSE: 10Hz to 50kHz (±1dB)
  • THD+N @ 1KHZ 0DBFS: <0.0005% (A-Weighted)
  • SIGNAL TO NOISE RATIO: >115dB (A-Weighted)
  • CROSSTALK @ 10KHZ: < -110dB
  • OUTPUT IMPEDANCE: <50 Ohms (unbal), <100 Ohm (bal)
  • MAX. OUTPUT LEVEL (UNBALANCED): 2.1V rms (fixed or variable – user selectable)
  • MAX. OUTPUT LEVEL (BALANCED): 4.2V rms (fixed or variable – user selectable)
  • DIGITAL INPUT WORD WIDTHS SUPPORTED: 16bit (Bluetooth), 16-24bit (Optical, Coaxial), 16-32bit (USB)
  • DIGITAL INPUT SAMPLING FREQUENCIES SUPPORTED: 44.1kHz to 96kHz PCM, DoP64 (Optical), 44.1kHz to 192kHz PCM, DoP64 (Coaxial), 44.1kHz to 768kHz PCM, Native DSD 64x to 512x, DoP 64x to 256x (USB)
  • MQA COMPATIBILITY: Full decoding (Core + Renderer)
  • BLUETOOTH: v4.2, A2DP profile, SBC and AptX codecs
  • HEADPHONE OUTPUT THD+N: < 0.001% at 1kHz 0dBFS @ 100mW into 32ohm
  • HEADPHONE OUTPUT S/N :> 115dB (A-Weighted)
  • MAX OUTPUT POWER: >300mW @ 32ohm, >65mW @ 150ohm
  • FREQUENCY RESPONSE: 10Hz - 50kHz (±1dB)
  • RECOMMEND HEADPHONE IMPEDANCE: 10 Ohm to 600 Ohm
  • MAX POWER CONSUMPTION: 12W
  • COLOUR: Lunar Grey
  • DIMENSIONS (HXWXD): 52 x 215 x 191mm; (2.0 x 8.6 x 7.6”)
  • WEIGHT: 1.2kg/2.6lbs
