ADAM AUDIO T5V
- Noliktavā: Uz pasūtījuma
- Ražotājs: ADAM AUDIO
- Modelis: ADMT5V
- Svars: 5.70kg
- Izmērs: 297.00mm x 179.00mm x 298.00mm
199.00€
164.50€
bez PVN: 135.95€
ADAM AUDIO T5V
The T5V is a highly affordable two-way nearfield monitor and optimized for small control rooms.
With its 5” woofer the bass-frequency response of the T5V extends to 45 Hz. The new U-ART tweeter, a breakthrough solution for use in high-resolution recording and mixing on a budget, goes up to 25 kHz and is mated to a precision waveguide with the same dispersion-control attributes as the High Frequency Propagation (HPS) waveguide used in ADAM Audio’s flagship S Series monitors. The waveguide’s highly uniform dispersion of high frequencies provides an incredibly wide sweet spot that frees you from being glued to a rigid mix position while working.
A beveled cabinet with a rear-firing bass reflex port and a small footprint allows placement anywhere in your room, no matter how small, and contains built-in DSP-controlled driver crossovers and equalization as well as multi-way analog connections. Powered with a 50 W Class D amplifier for the woofer and a 20 W Class D amplifier for the U-ART tweeter, the T5V produces SPLs of up to 106 dB per pair.
Excellent acoustic characteristics, small dimensions and an outstanding cost/performance ratio make this studio monitor perfectly suited for use in small control rooms in music, video and broadcast production.
TECHNICAL DATA
WOOFER
- Number: 1
- Basket Ø: 5" (127 mm)
- Cone Material: Polypropylene
TWEETER
- Number: 1
- Type: U-ART
- Diaphragm Area: 4 inch² (2420 mm²)
- Equiv. Diaphragm Ø: 1.9" (48 mm)
- Velocity Transform Ratio: 4:1
- Diaphragm Weight: 0.17 g
- Waveguide: HPS
BUILT-IN AMPLIFIERS
- Number: 2
- Woofer: 1
- Type: PWM
- Amp. Power RMS: 50 W
- Tweeter: 1
- Type: PWM
- Amp. Power RMS°: 20 W
CONTROL OPTIONS
- Input Sensitivity: Switchable +4 dBu / -10 dBV
- Gain: Yes
- High-Shelf: - 2 dB, 0 dB, +2 dB
- Low-Shelf: - 2 dB, 0 dB, +2 dB
INPUT CONNECTORS
- Analog: XLR, RCA
- Input Impedance: 10 kOhm / 20 kOhm
GENERAL DATA
- Panel: Rear

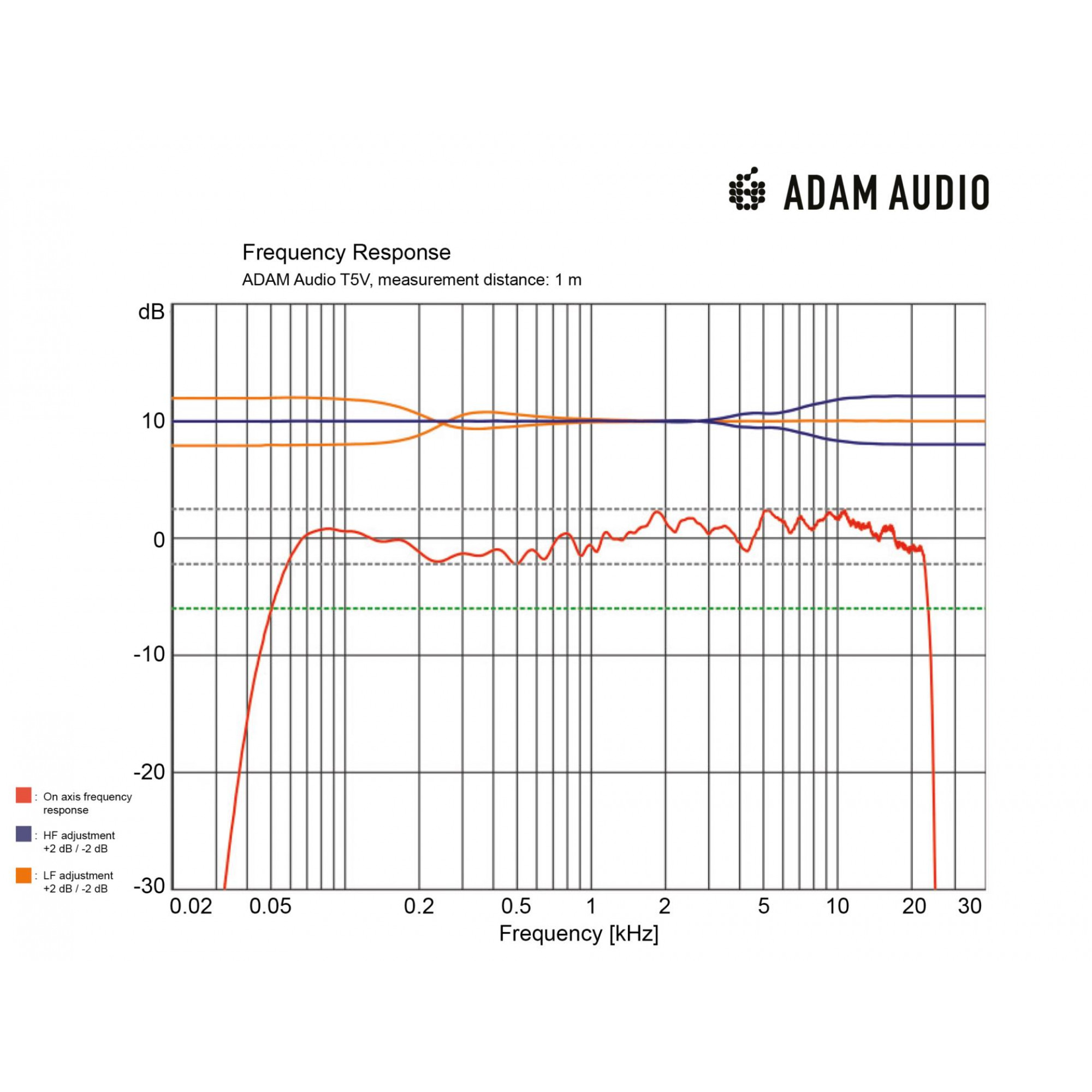

- Frequency Response: 45 Hz - 25 kHz
- THD > 80 Hz: 0.5 %
- Max. SPL per pair at 1 m: ≥106 dB
- Crossover Frequency: 3 kHz
- Max. Power Consumption: 132 W
- Weight: 12.6 lbs (5.7 kg)
- Height x Width x Depth: 11.7" x 7" x 11.7" (298 mm x 179 mm x 297mm)
- Warranty: 5 years (2 years warranty plus 3 years optional with product registration)
- Delivery Contents: Power cord, Quick Start Guide
| Frekvenču diapazons (Hz) | 45 - 25.000 |
| Jauda (RMS), W | 50 |
| Skaļruņa diametrs (collas) | 5 |
| Skaļums (max SPL), dB | 106 |
