SENNHEISER XSW 2-865 A

SENNHEISER XSW 2-865 A
SENNHEISER XSW 2-865 A
SENNHEISER XSW 2-865 A
SENNHEISER XSW 2-865 A
SENNHEISER XSW 2-865 A
SENNHEISER XSW 2-865 A
Raise your voice. High flexibility for those willing to go a step further. XS WIRELESS 2 grows with your demands by offering an intuitive LCD display for more manual options and 12 compatible channels in a stable UHF band, withstanding tougher live stage conditions.

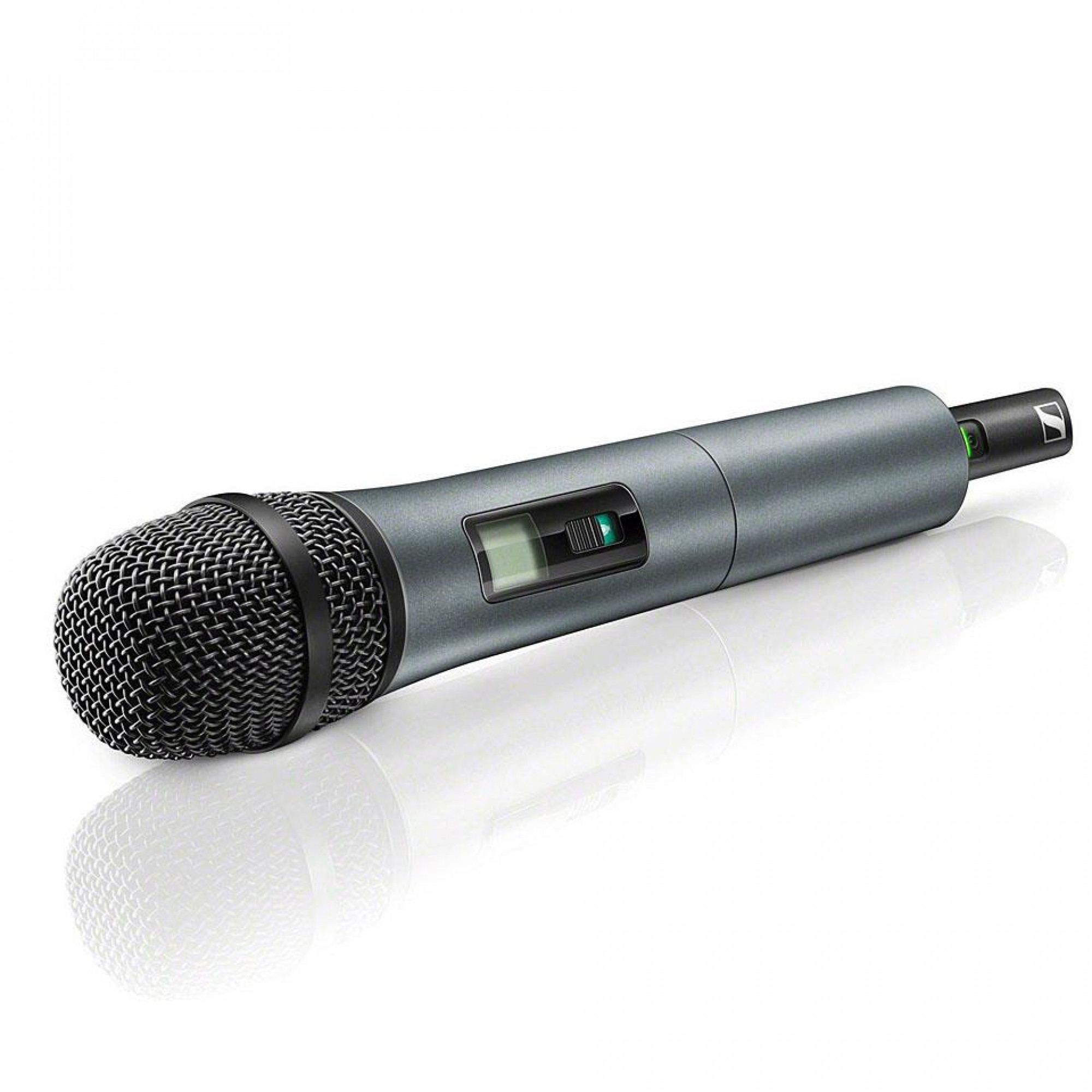

The XS WIRELESS 2 VOCAL SET is an easy to use all-in-one wireless system for singers and presenters featuring Sennheiser’s renowned evolution microphone capsule e865 (condenser, super-cardioid) to capture every detail. True Diversity receiver in a metal housing and rackmount kit included.

Excellent live sound featuring Sennheiser’s renowned evolution microphone capsules

True diversity receiver with metal housing

External antennas

Automatic frequency management and synchronization via

remote channel for easy setup

Fully tunable over a wide range of UHF frequencies

Rackmount kit included

Up to 12 compatible channels



Specifications
Receivers
Dimensions
approx. 200 x 42 x 127 mm

Weight
approx. 680g

Power supply
12 V DC nom. / 300 mA

Housing
metal, microphone: robust ABS

AF frequency response
50 to 16,000 Hz (–3 dB)
Microphone
Dimensions
approx. 260 x 50 mm

Weight
approx. 245g

Operating time
approx. 10 hrs

Power supply
2 AA size batteries, 1.5 V

AF frequency response
80-16,000 Hz
Microphone
condenser

Frequency response
50 to 16,000 Hz (–3 dB)

THD, total harmonic distortion
≤ 0.9%

Pick-up pattern
super-cardioid

Signal-to-noise ratio
≥ 103 dBA

RF output power
10 mW

Switching bandwidth
up to 24 MHz

Modulation
wideband FM

Output voltage
1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu

Frequency
8 frequency banks, each with up to 12 factory-preset channels

Frequency range
A: 548-572 MHz
GB: 606-630 MHz
B: 614-638 MHz
C: 766-790 MHz
D: 794-806 MHz
E: 821-832 MHz, 863-865 MHz
K: 925-937.5 MHz

Sensitivity
< 3 μV at 52 dB(A)rms S/N

Squelch
switchable from 3 dBμV to 28 dBμV (via Pilot Tone)

Synchronization
2.4 GHz, Low Power OQPSK (only active during synchronization)

Input sensitivity
1.8 mV / Pa


Audio adjustment range
40 dB, adjustable in 5-dB steps

Line / Mic level
20 dB, switchable

Temperature Range
operation: 0°C to +40°C, storage: –20°C to +70°C

Receiver Principle
double superheterodyne

Diversity principle
True Diversity
What's in the Box
1 receiver EM-XSW 2
1 handheld transmitter SKM 865-XSW
1 microphone clamp MZQ 1
1 power supply NT 12-5 CW
2 AA batteries
1 rackmount kit
1 pouch
user manual
Mikrofoni un to piederumi
Ekstras Rack stiprinājums
Frekvence 548 - 572 MHz A
Izmantošanas veids Rokas
Pielietojums Runāšanai / Vokālam
Tips Kondensatora
Virziena veids Superkardoīda
